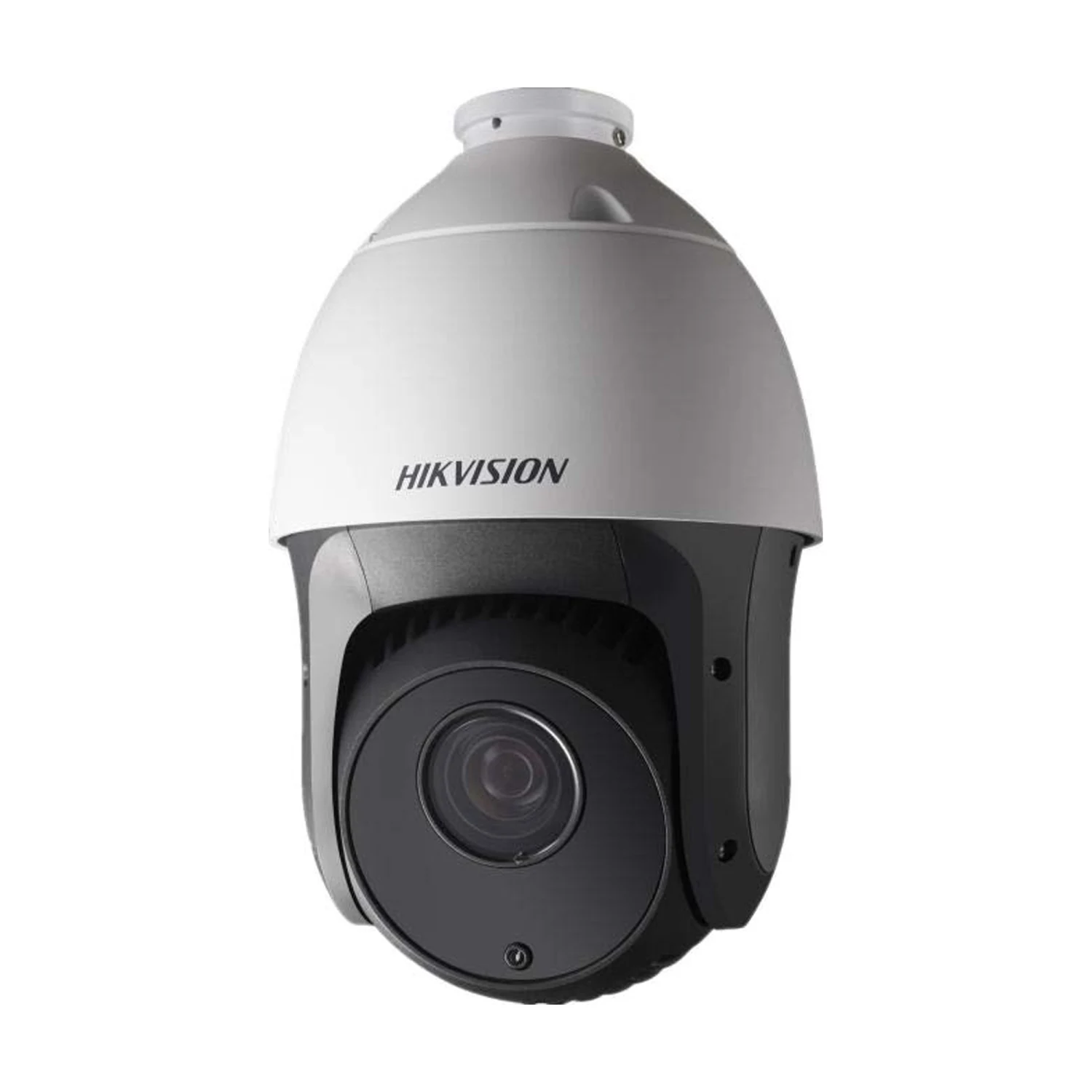

Hikvision 2MP 20x Network IR PTZ Camera DS-2DE5220I-AE ( Хөдөлгөөнт Хяналтын Камер )

Барааны код: #18720

Hikvision 2MP 20x Network IR PTZ Camera DS-2DE5220I-AE ( Хөдөлгөөнт Хяналтын Камер )

Бүтээгдэхүүний үндсэн үзүүлэлт

  • Брэнд: Hikvision

Үнэ :

889,000 ₮

0 ширхэг бэлэн байна

Энэ бараа дууссан байна. Танд асуух зүйл байвал 7575-6677 утсаар холбогдоорой

Голомт банк

Хэрэглээний зээл

StorePay

Төлбөрөө 4 хувааж төл

Omniway

Төлбөрөө 2-4 хувааж төл

Pocket

Урьдчилгаагүй шимтгэлгүй

Sono

Хүү ТЭГ, шимтгэл ТЭГ.

Техникийн үзүүлэлт

Image Sensor1/2.8" Progressive Scan CMOS
Max. Image Resolution1920 × 1080
Min. IlluminationColor: 0.02 lux, B/W: 0.002 lux (F1.5, AGC on), 0 lux with IR
Focal Length4.7 to 94.0 mm, 20× optical
Digital Zoom16×
Zoom SpeedApprox. 3 s (optical wide to tele)
Angle of View58.3° to 3.2° (wide to tele)
Min. Working Distance10 to 1,000 mm (wide to tele)
Aperture RangeF1.6 to F3.5
Focus ModeAuto/Semi-automatic/Manual
DWDRSupport
S/N Ratio≥ 52 dB
Shutter Time1 to 1/10,000 s
AGCAuto/Manual
White BalanceAuto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & NightIR cut filter
Privacy Mask8 programmable privacy masks
Image Enhancement3D DNR, Defog, Anti-flicker (Off/50 Hz/60 Hz), HLC/BLC
Pan Range360° endless
Tilt Range-15° to 90° (auto flip)
Pan SpeedManual: 0.1° to 400°/s; preset: 400°/s
Tilt SpeedManual: 0.1° to 200°/s; preset: 200°/s
Presets300
Patrol8 patrols, up to 32 presets per patrol
Park ActionPreset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/Panorama scan
Scheduled TaskAuto scan/Frame scan/Random scan/Patrol/Pattern/Preset/Panorama scan/Tilt scan/Dome reboot/Dome adjust/Aux output
3D PositioningYes
Power-off MemoryYes
IR DistanceUp to 150 m
IR IntensityAutomatically adjusted, depending on the zoom ratio
DetectionIntrusion detection, line crossing detection, audio exception detection, motion detection
ROI Encoding4 areas with adjustable levels
Alarm I/O2/1
Alarm TriggerIntrusion detection, line crossing detection, audio exception detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception
Alarm ActionPreset, patrol, pattern, recording, relay output, upload center, upload FTP, email linkage
Audio Input1 Mic in/Line in interface, line input: 2-2.4 V [p-p], impedance: 1 KΩ ± 10%
Audio Output1 audio output interface, line level, impedance: 600 Ω
Ethernet10Base-T/100Base-TX, RJ45 connector
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream50 Hz: 25 fps (704 × 576, 352 × 288, 320 × 240); 60 Hz: 30 fps (704 × 480, 352 × 240, 320 × 240)
Image CompressionH.264/MJPEG
Audio CompressionG.711ulaw/G.711alaw/G.726/MP2L2/G.722
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live ViewUp to 20 users
Memory CardMicro SD/SDHC/SDXC card up to 128 GB; edge recording
User/Host LevelUp to 32 users; 3 levels: administrator, operator and user
Security MeasuresUser authentication (ID and PW); host authentication (MAC address); IP address filtering
APIONVIF, PSIA, CGI; EZVIZ cloud P2P
RS-485 ProtocolsHIKVISION, Pelco-P, Pelco-D, self-adaptive
PowerHi-PoE & 24 VAC, max. 32 W
Working Temperature-30 °C to 65 °C (-22 °F to 149 °F)
Humidity90% or less
Protection LevelIP66, TVS 4,000 V lightning protection, surge protection and voltage transient protection
CertificationFCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC/EN 60950-1
DimensionsΦ185 × 330 mm
