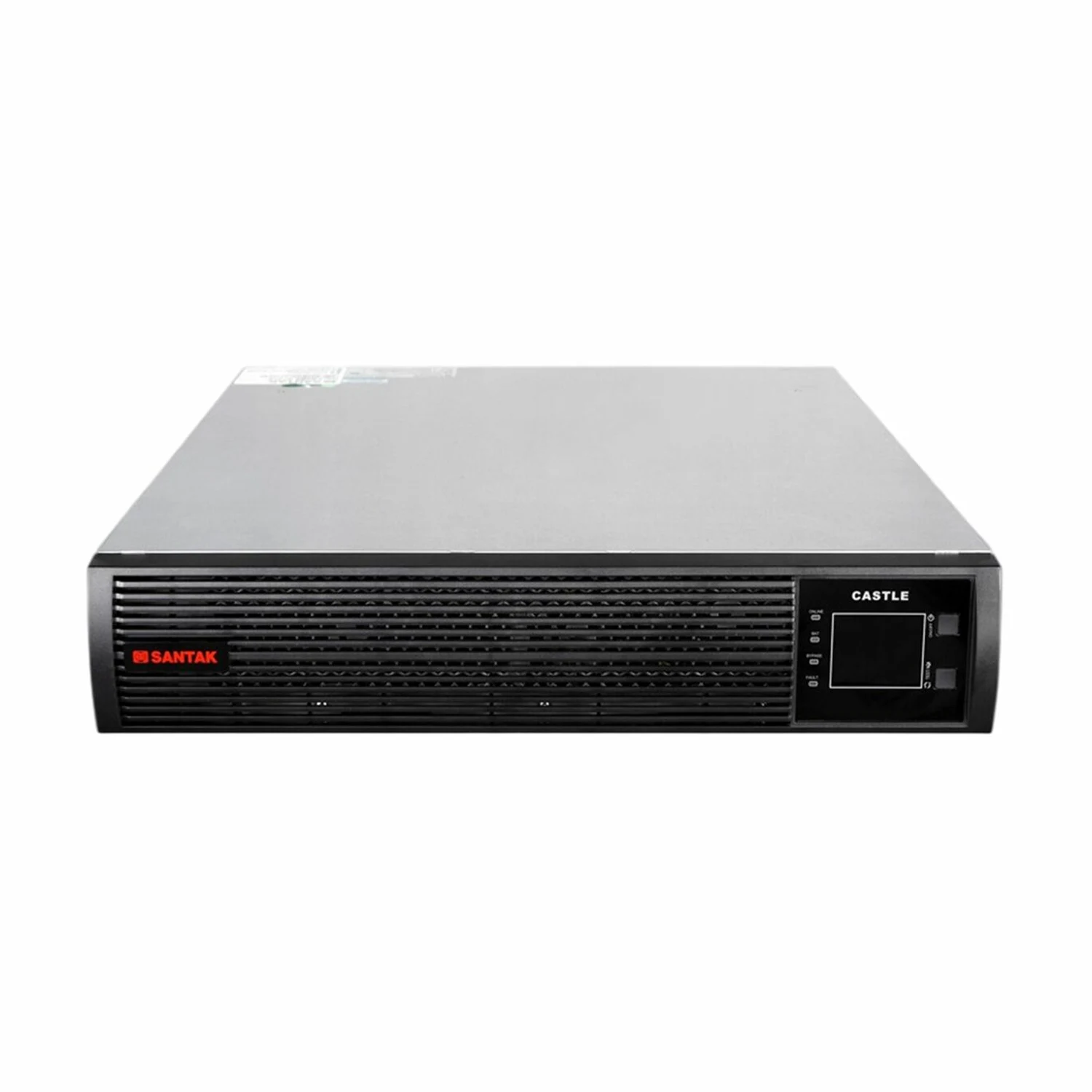

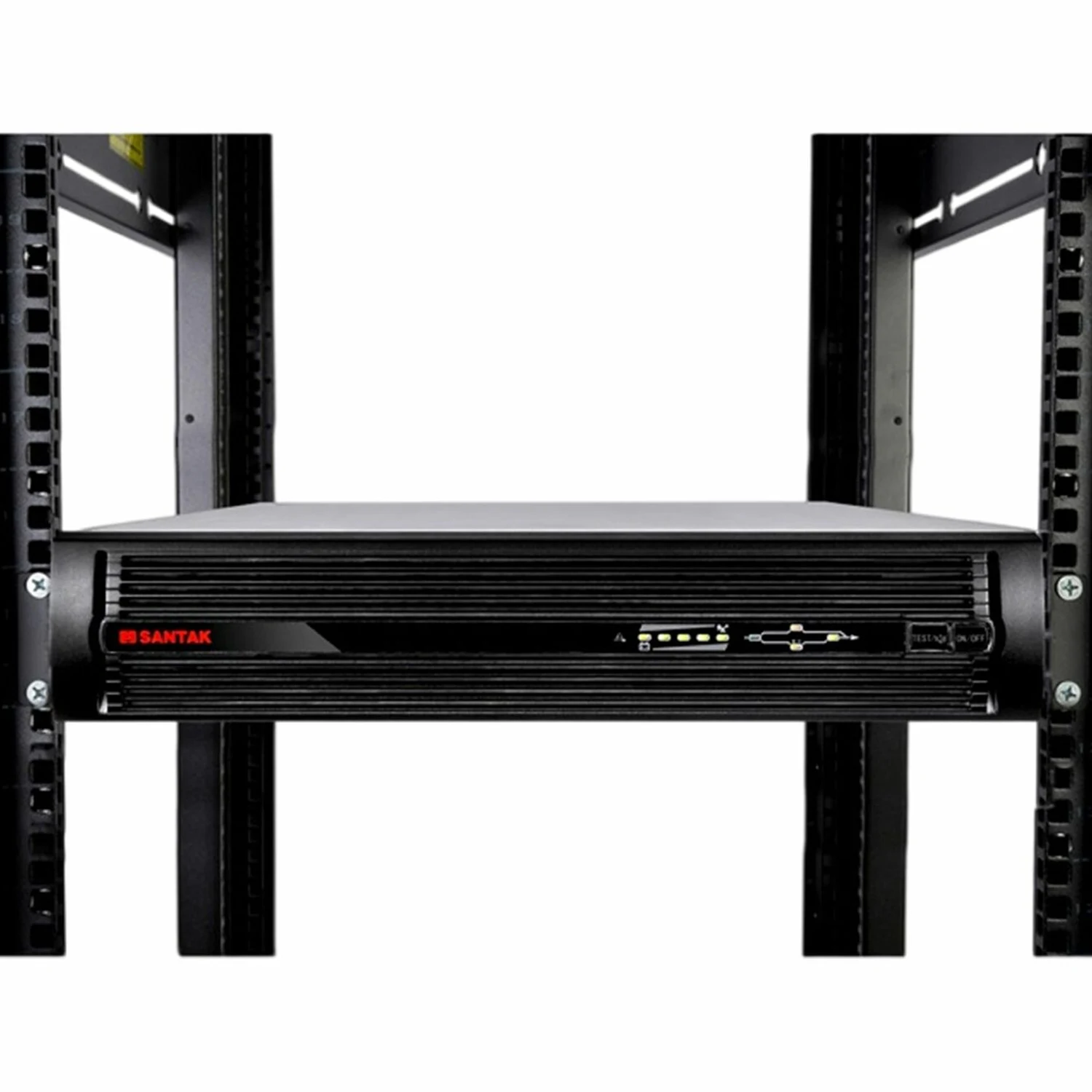

Santak CASTLE RACK C3KR On-Line 3000VA/2400W Rack UPS
| Power rating | 3 kVA | |||||
|---|---|---|---|---|---|---|
| Input | Input Voltage Range: (110-300)VAC Frequency Range: 40-70 Hz Input Power Factor: ≥0,98 | |||||
| Output | Nominal Output Voltage: 220*(1±2%)VAC Frequency Range: sync with line of +/-4Hz(Line mode), 50±0.05Hz (Battery mode) Output Power Factor: 0.9@30°C and 0.8@40°C Overload capacity: 105%-150%，47s-25s；150%-200%，25s-300ms；>200%，200ms (0.8PF) Outlet: IEC C13*3 pcs + C19*1 pc | |||||
| Battery and charger | Tegangan Pengenal Baterai: 72V Type: Maintenance-free Sealed Lead-acid UPS Batteries Number of Internal Battery: 6PCS Recharge Current: 1A | |||||
| Waktu Transfer | Battery Mode<-->InverterMode 0ms Inverter Mode<-->BypassMode 4ms (typical) | |||||
| Backup time (80% load, 0.8PF) | >4,5 mnt | |||||
| Indicator | LED: Load, battery capacity, UPS working mode | |||||
| Alarm | Battery full: 1buzzing/4s; Battery empty: 1buzzing/1s Alarm UPS: Buzzing continue | |||||
| Auto restart | Auto restart while mains recover | |||||
| Interface | USB: Monitoring Optional Parts: NMC Card, Modbus Card, Relay Card | |||||
| Environment | Temperature: 0°C-40°C Humidity: 0-95%, non-condensing | |||||
| Net Weight | 21,6 | |||||
| Dimension (W*D*H) | 438 x 570 x 87 | |||||
