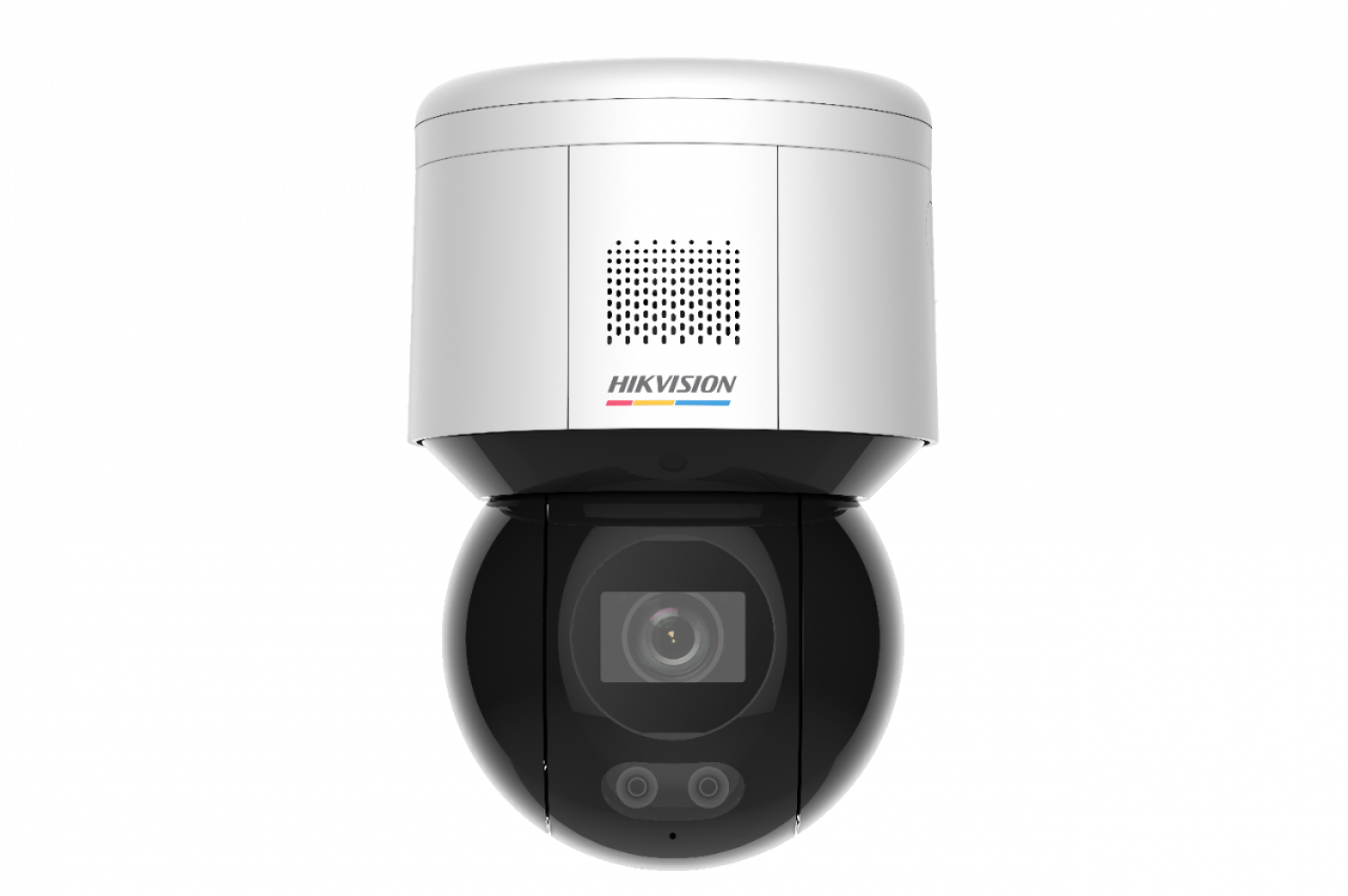

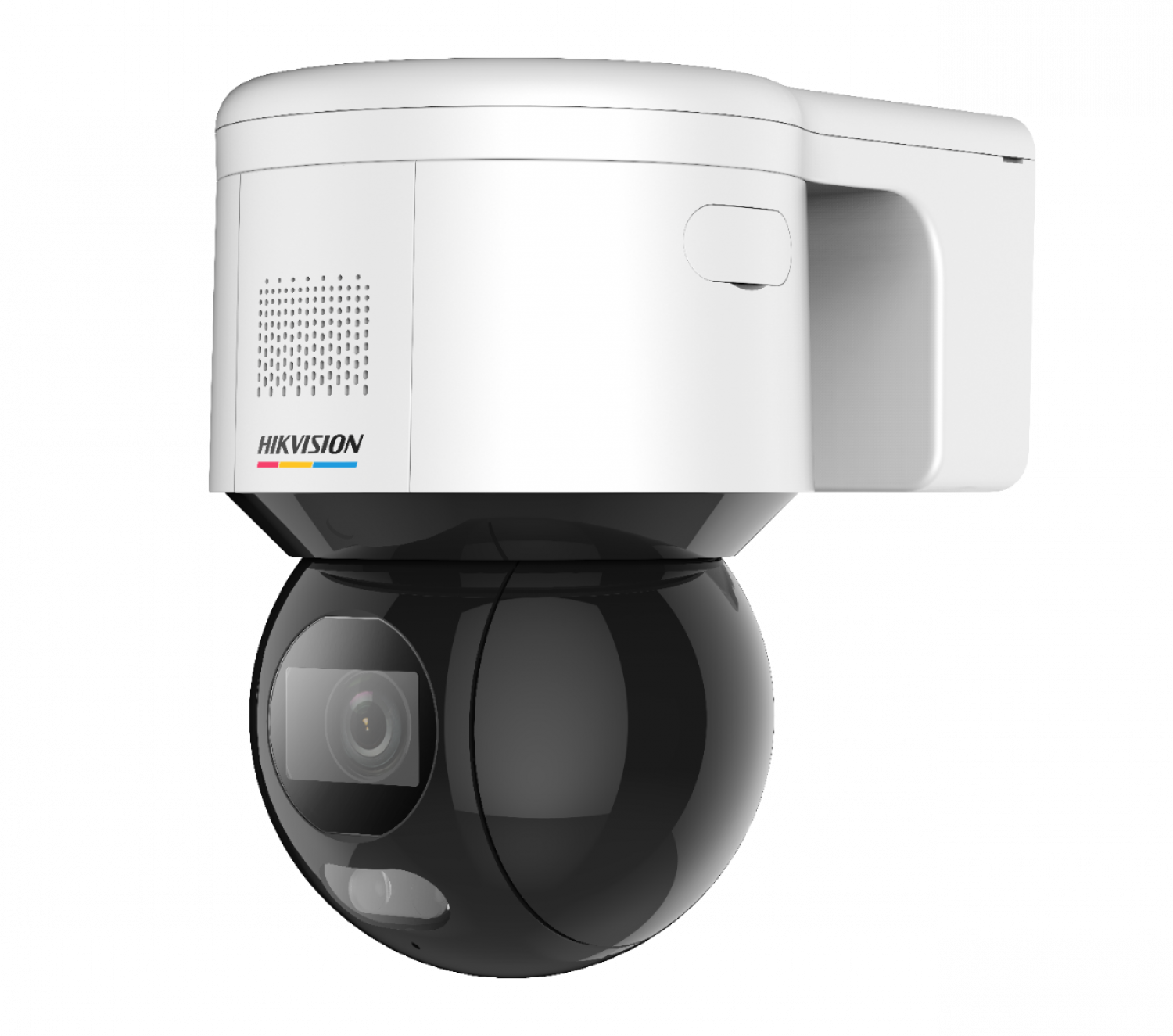

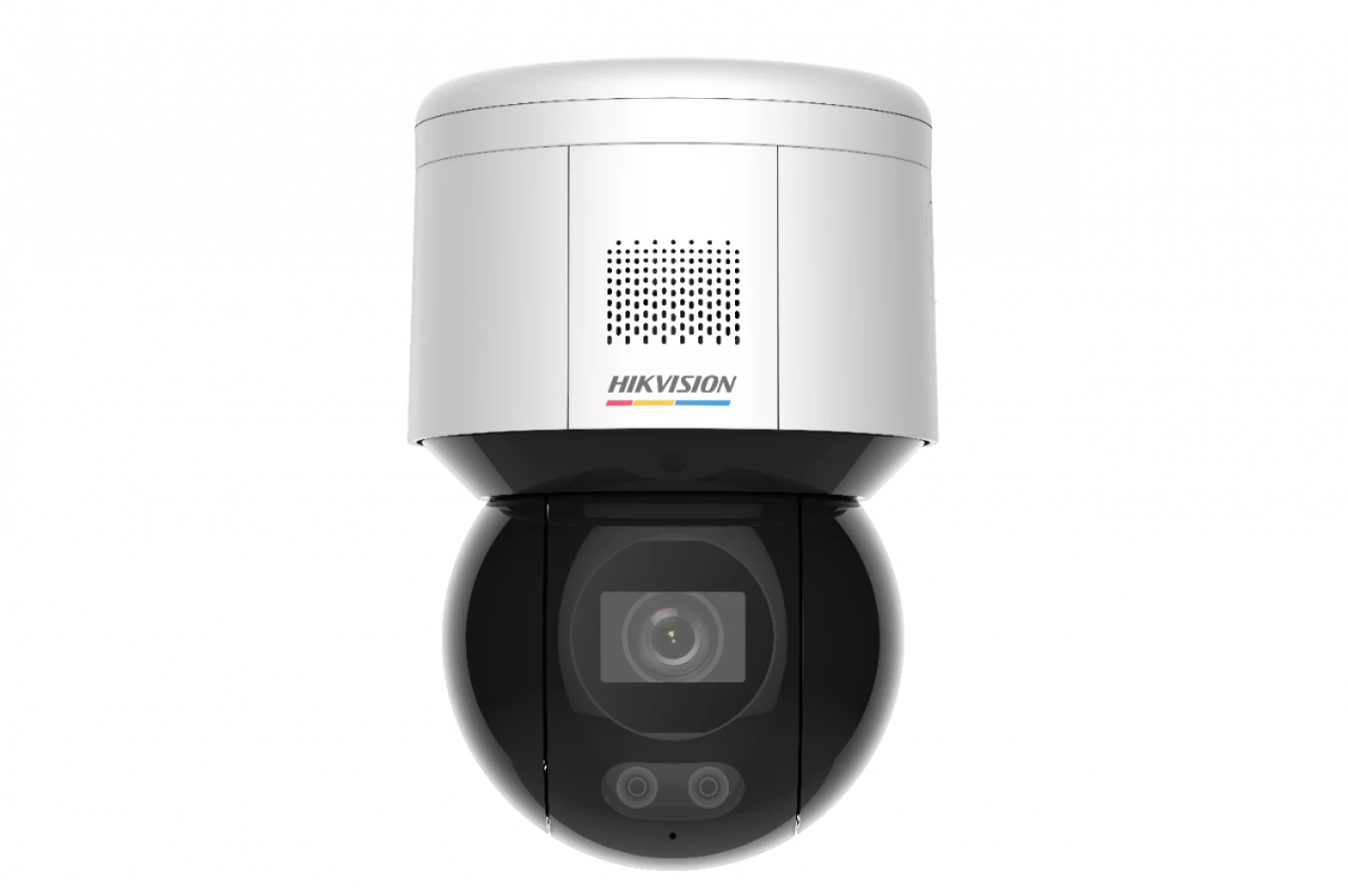

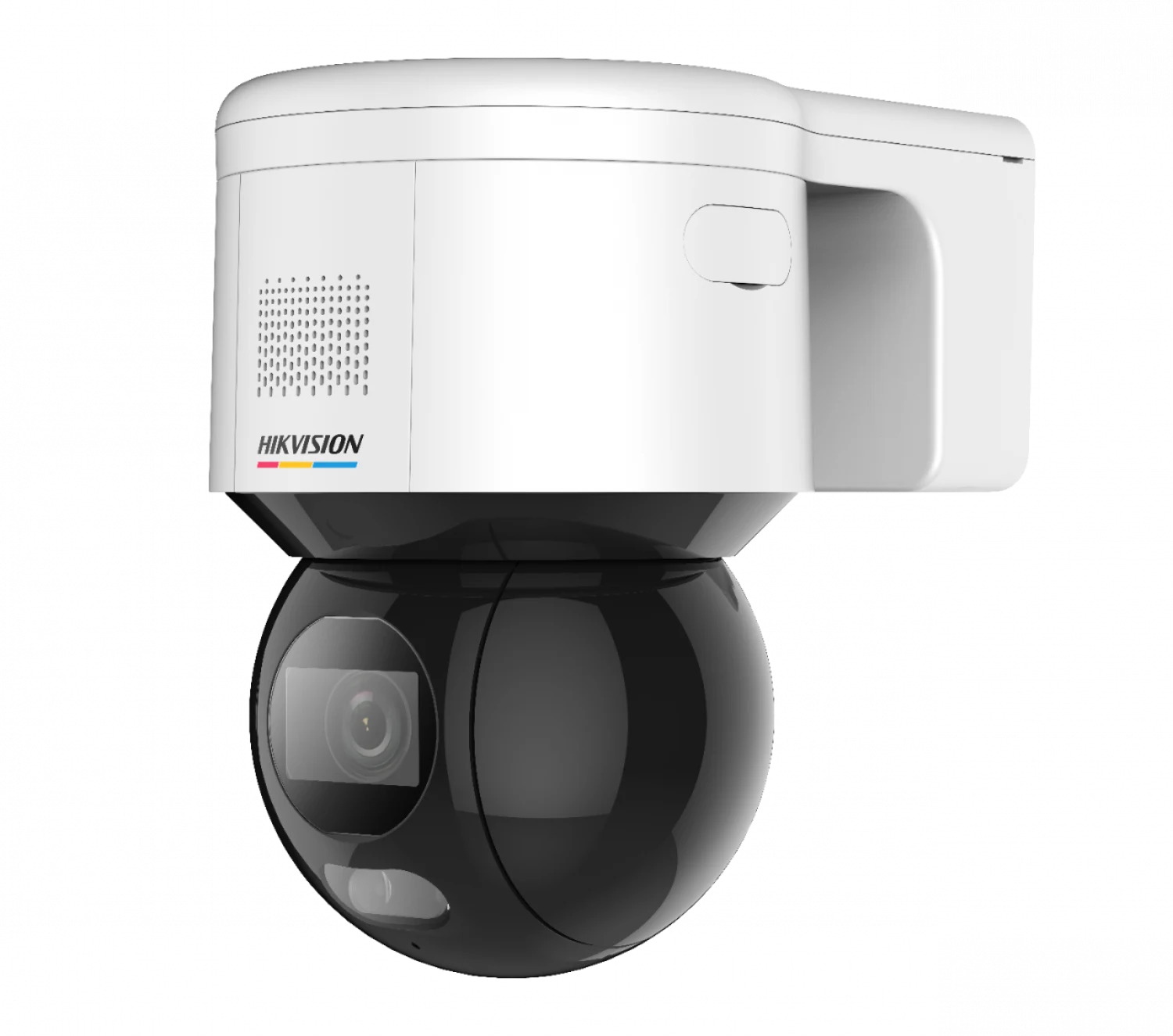

Hikvision ColorVu 4MP Mini PT Dome Camera DS-2DE3A400 (PTZ) ( Хөдөлгөөнт Хяналтын Камер )
Барааны код: #20166
Бүтээгдэхүүний үндсэн үзүүлэлт
- Case Type: Dome
- Брэнд: Hikvision
Үнэ :
599,900 ₮
0 ширхэг бэлэн байна
Энэ бараа дууссан байна. Танд асуух зүйл байвал 7575-6677 утсаар холбогдоорой
Техникийн үзүүлэлт
| Image Sensor | 1/1.8" progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light |
| Shutter Speed | 1/1 to 1/30,000 s |
| Day & Night | 24/7 colorful imaging |
| Zoom | 16x digital |
| Focal Length | 4 mm |
| FOV | Horizontal: 88.7°, vertical: 46.5°, diagonal: 105.0° |
| Aperture | F1.0 |
| Supplement Light Type | White light |
| Supplement Light Range | Up to 30 m |
| Movement Range (Pan) | 350° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Configurable from 0.1° to 60°/s; preset speed: 60°/s |
| Tilt Speed | Configurable from 0.1° to 50°/s; preset speed: 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG; third stream: H.265/H.264/MJPEG |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Environment Noise Filtering | Yes |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB WDR |
| SNR | > 52 dB |
| Defog | Digital defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | Up to 24 masks (8 masks for each scene) |
| Regional Exposure | Yes |
| Basic Event | Video tampering alarm, motion detection, alarm input, alarm output, exception |
| Smart Event | Line crossing, region entrance, unattended baggage, object removal, intrusion, region exiting, audio exception detection |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; alarm triggering by specified target types (human and vehicle) |
| Face Capture | Detects up to 5 faces simultaneously; detecting, capturing, grading, selecting of face in motion, outputs the best face picture |
| Linkage | Preset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP |
| User/Host | Up to 32 users; 3 levels: administrator, operator and user |
| Security | Authenticated username and password, MAC address binding, HTTPS encryption, IP address filter |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at) |
| On-board Storage | Built-in memory card slot, MicroSD/SDHC/SDXC, up to 512 GB |
| Built-in Speaker | 1 built-in speaker |
| Audio Interface | 1 input (line in), 1 output (line out) |
| Alarm | 1 input, 1 output |
| RS-485 | 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Power Output | 12 VDC; < 60 mA |
| Reset | Yes |
| Power | 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A; max. 14 W (including max. 4 W for white light) |
| Operating Condition | Humidity: ≤ 90%; temperature: -30 °C to 65 °C (-22 °F to 149 °F) |
| General Function | Mirror, password protection, watermark, IP address filter |
| Demist | Yes |
| Dimension | 179.3 × 120 × 182 mm (7.06" × 4.72" × 7.71") |
| Weight | Approx. 1.125 kg (2.48 lb.) |
