Power rating | 3000VA/2700W | |||||
---|---|---|---|---|---|---|
Input | Input Voltage Range: (100-300)VAC Frequency Range: 40-70 Hz Input Power Factor: ≥0.99 | |||||
Output | Nominal Output Voltage: 220/230/240VAC Frequency Range: 50±0.05Hz (Battery mode) Output Power Factor: 0.9 Voltage Regulation: 1% Outlet: IEC C13*4+C19*1 Current Crest Ratio: 3:1 Voltage Distortion (T HDv): < 1% @ linear load, < 5%@ non-linear load Output Waveform: Pure sine wave | |||||
Efficiency | Inverter Mode: >91% ECO Mode: >97% | |||||
Battery | Battery Type: 12V / 9Ah Number of Internal Battery: 6 Rated Battery Voltage: 72V Backup Time (@ FullLoad): > 3.5 mins Recharge Time (t o 90%): 4 hours Charging Current: 1.5A | |||||
Transfer Time | Battery Mode<-->InverterMode: 0ms Inverter Mode<-->BypassMode 4ms (typical) | |||||

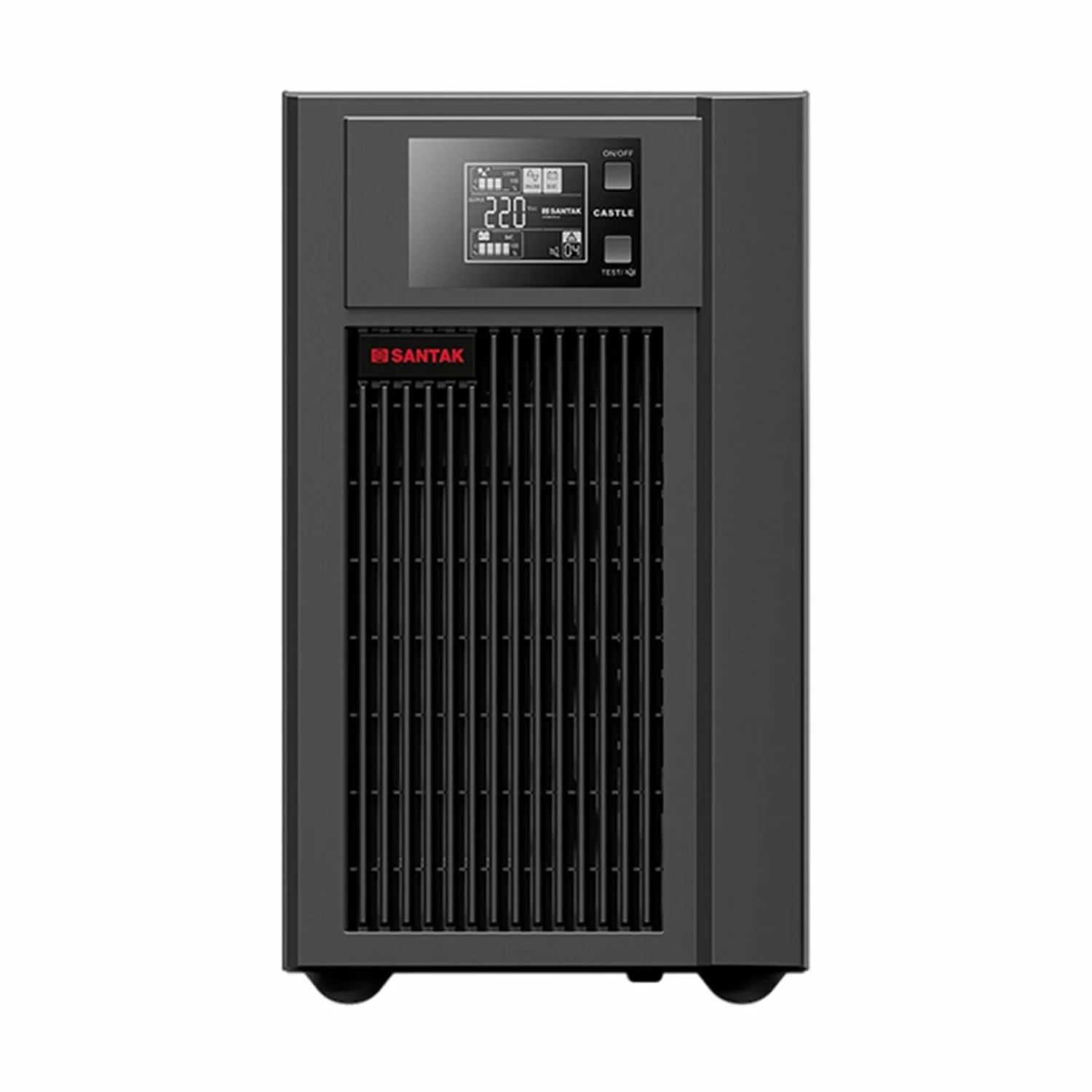

Display | LED: load rating / battery capacity / input / output / operating mode | |||||

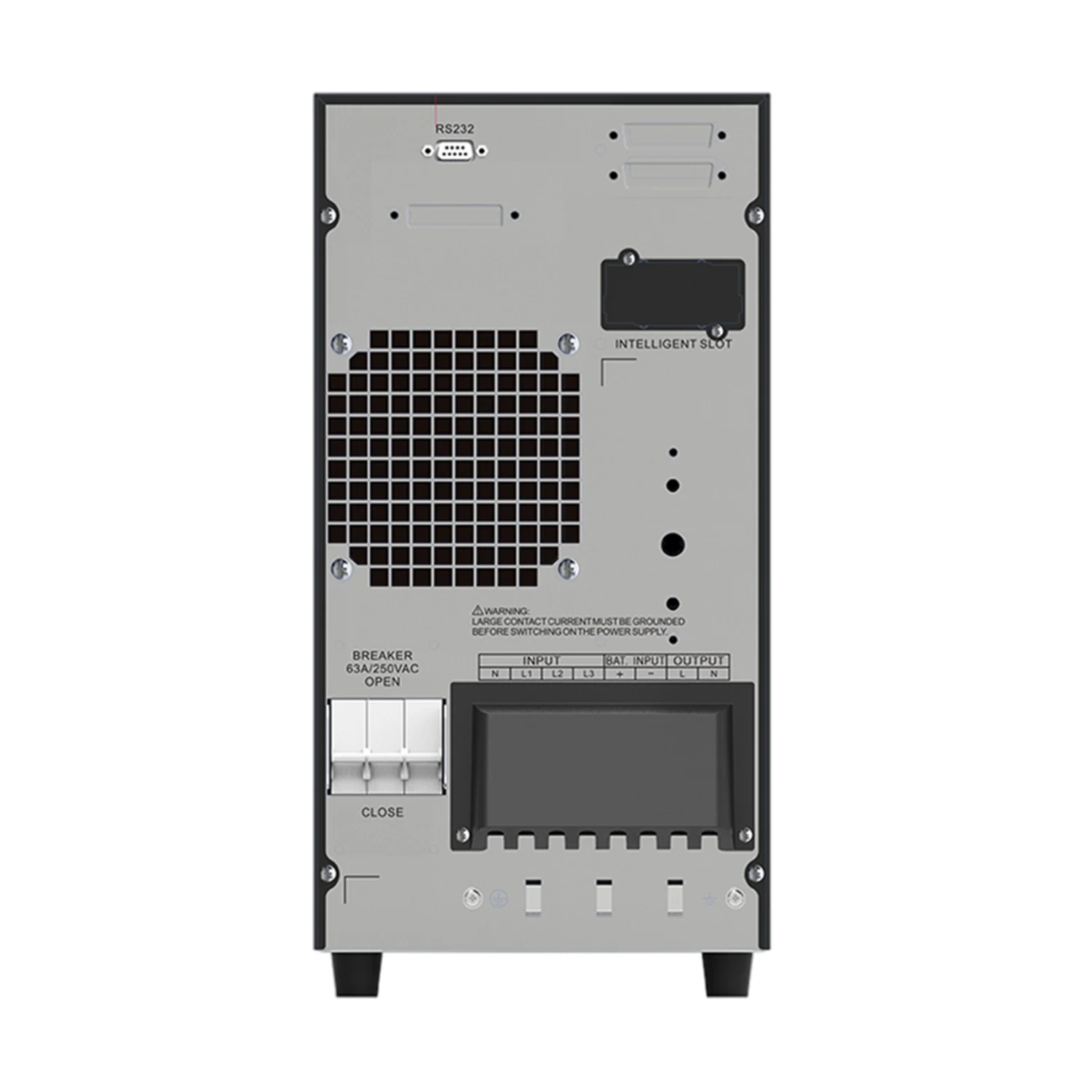

Interface | RS232: IEC model and UNIVERSAL model: RS232; SCHUKO model and SCHUKO/NEMA adaptable model: USB+EPO, no RS232 Communication Slot: Yes, comply optional cards NMC, CMC, AS400 card | |||||
Environment | Operating Temperature: 0~40℃ Noise Level 1: <40dB@1 meter | |||||
Net Weight | 22.7 kg | |||||
Dimension (W*D*H) | 190x327x399mm |
