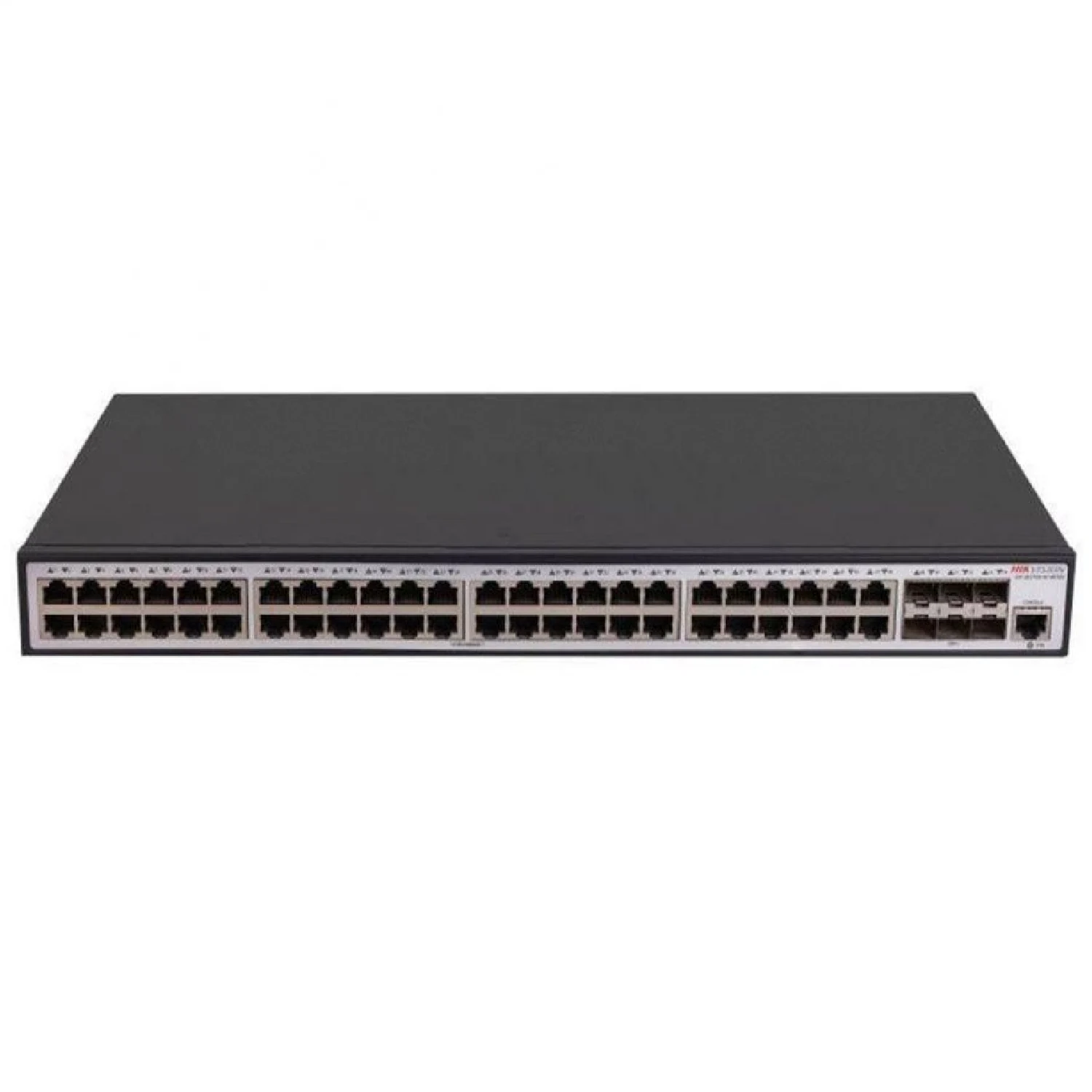

Hikvision 48-Port GE Gigabit RJ45 6x10G SFP L2+ Smart Managed Switch DS-3E2754-HI-48T6X ( Свич Салаалагч , Сүлжээний Төхөөрөмж )
Барааны код: #26843
Бүтээгдэхүүний үндсэн үзүүлэлт
- Type: Unmanaged Switch
- Ports: 48-Port
- Interface: 10/100/1000Mbps
- PoE Support: Үгүй
- Installation: Desktop / Rackmount
- Брэнд: Hikvision
Үнэ :
2,839,900 ₮
4 ширхэг бэлэн байна
Бэлэн бараа 12-72 цагт хүргэгдэнэ
Хүргэлтийн үйлчилгээ
Төлбөр баталгаажсан үеэс хойш 08-48 цагийн дотор хүргэгдэнэ
- 100,000 төгрөг болон түүнээс дээш үнийн дүнтэй барааг үнэгүй хүргэнэ
- 100,000 төгрөг дотор үнийн дүнтэй барааг 5000 төгрөгөөр хүргэнэ
Хүргэлтийн бүс
- Баруун зүг /5 шар/
- Зүүн зүг /Амгалан/
- Урд зүг /Зайсан, Архивын ерөнхий газар/
- Хойд зүг / 7 Буудал/
Техникийн үзүүлэлт
| Model | DS-3E2754-HI-48T6X |
| Shell | Metal |
| Net Weight | 3.60 kg (7.93 lb) |
| Gross Weight | 4.95 kg (10.91 lb) |
| Dimensions (W × H × D) | 440.00 mm × 260.00 mm × 43.60 mm (17.32'' × 10.23'' × 1.71'') |
| Operating Temperature | -5 °C to 45 °C (23 °F to 113 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operating Humidity | 10% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | AC:100 V~240 V AC,50/60 Hz |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 53 W |
| Power Consumption in Idle | 19 W |
| Surge Protection | 6 kV |
| Ports | 48 × Gigabit RJ45 port,6 × 10G fiber optical port |
| MAC Address Table | 32 K |
| Internal Cache | 2.0 Mbits |
| Switching Capacity | Whole-Device Performance: 216 Gbps; Port Performance: 216 Gbps |
| Packet Forwarding Rate | Whole-Device Performance: 160.71 Mpps; Port Performance: 160.71 Mpps |
| Ethernet | LLDP; Static MAC configuration; Limit of number of MAC addresses to be learned (up to 32K); Port mirroring and traffic mirroring; Port aggregation (up to 24 groups and 8 ports for each group); Port isolation; STP/RSTP/MSTP; IEEE 802.3ad (dynamic link aggregation) and static port aggregation; RRPP/ERPS (Ethernet Ring Protection Switching); VRRP |
| VLAN | 802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP |
| IP Routing | Static routing; RIPv1/v2 and RIPng; OSPFv1/v2 and OSPFv3; IS-IS; Hardware-based IPv4/IPv6 routing; Inter VLAN routing |
| DHCP | DHCP Client; DHCP Snooping; DHCP Snooping option82; DHCP Relay; DHCP Server |
| Multicast | IGMP V1/V2/V3 snooping; PIM Snooping; Multicast VLAN; IPv6 multicast setting |
| QoS | SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
| ACL | ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL Ingress:1280.Egress:512 |
| Security | Hierarchical user management and password protection; SSH for a secure encrypted channel for user login; Specific IP address based FTP logging and password mechanism; Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet; MAC address limit; IP+MAC+PORT binding; IEEE 802.1x; Radius and AAA; SNMPv3; Broadcast suppression |
| System Management | Command line configuration via console/AUX Modem/Telnet/SSH; Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files; SNMP V1/V2c/V3; sFlow; NQA; NTP clock; System operating logs |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device. |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
