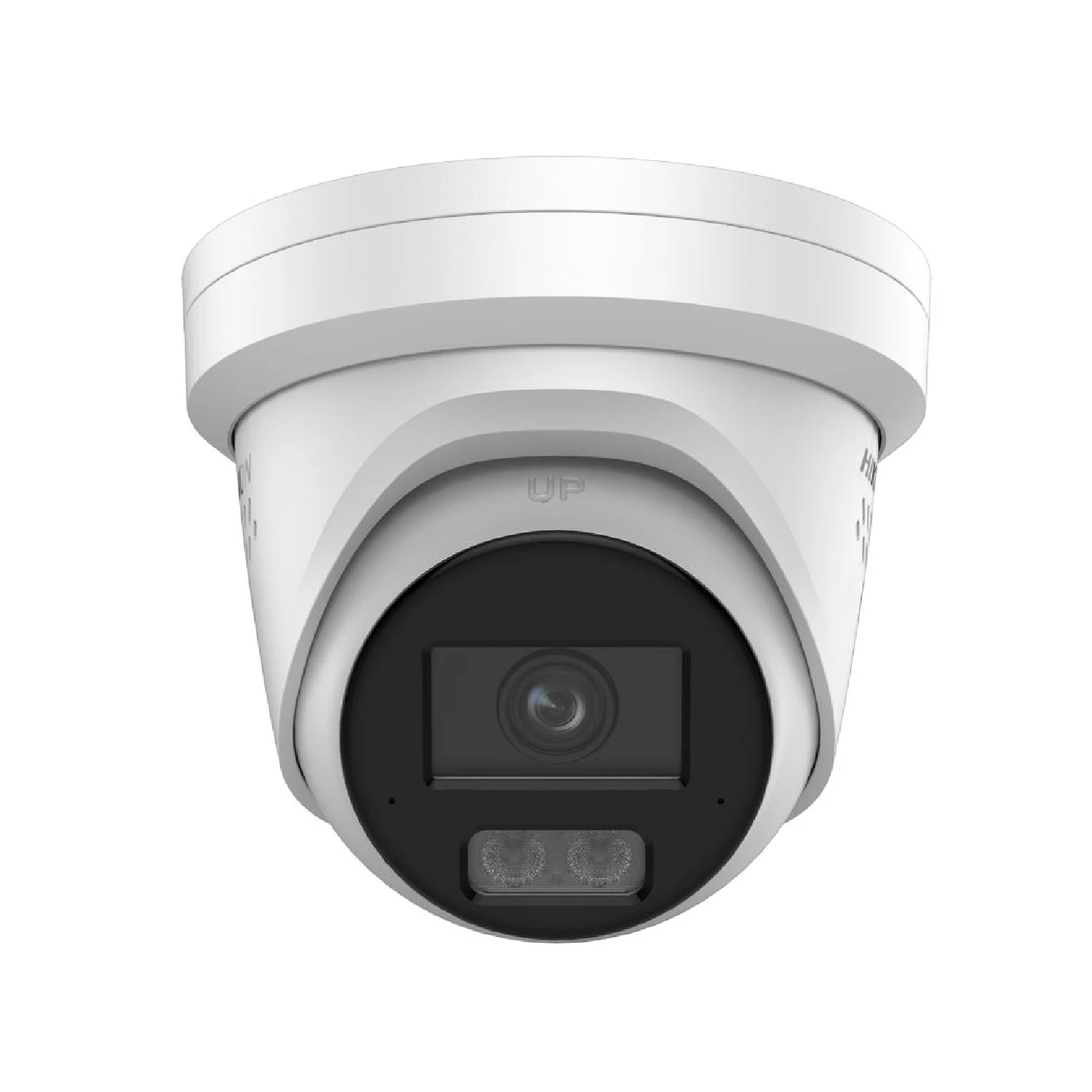

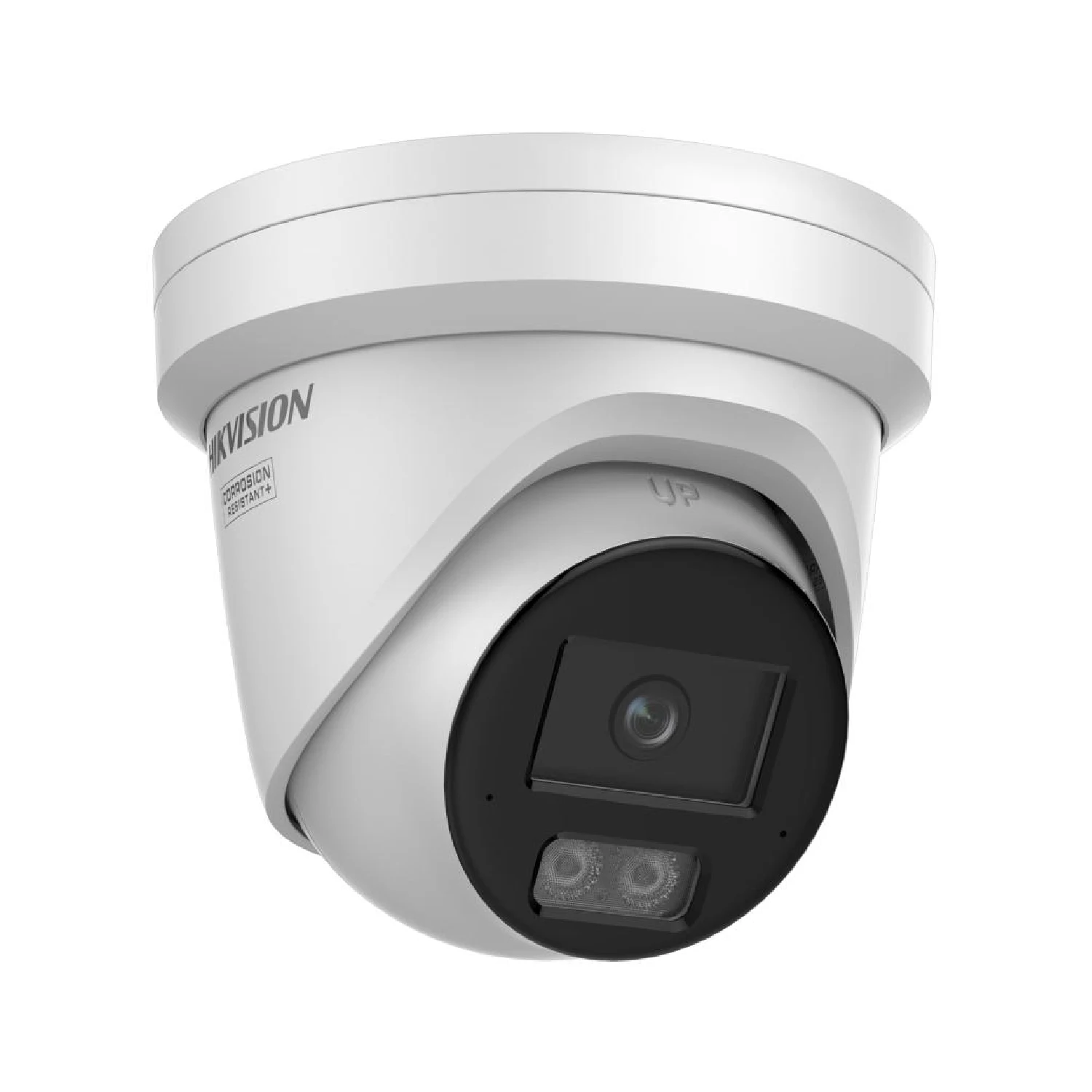

Hikvision 6MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera DS-2CD2367G3-LI2UY (Дотор Хяналтын Камер)
Барааны код: #28386
Бүтээгдэхүүний үндсэн үзүүлэлт
- Case Type: Turret
- Брэнд: Hikvision
- Resolutuin: 6MP
- Low-Light Imaging: Normal
Үнэ :
949,900 ₮
0 ширхэг бэлэн байна
Энэ бараа дууссан байна. Танд асуух зүйл байвал 7575-6677 утсаар холбогдоорой
Техникийн үзүүлэлт
| Model | Hikvision DS-2CD2367G3-LI2UY |
| Product Type | 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 3200 × 1800 |
| Minimum Illumination | Color: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with supplemental light |
| Shutter Time | 1 s to 1/100,000 s |
| Day and Night | IR cut filter |
| Image Processing | HikAI-ISP for excellent noise reduction |
| Angle Adjustment | Pan: 0° to 360°; tilt: 0° to 75°; rotation: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length and Field of View | 2.8 mm: horizontal 108.8°, vertical 56.4°, diagonal 134.3°; 4 mm: horizontal 93.3°, vertical 47.2°, diagonal 114.2° |
| Lens Mount | M16 |
| Aperture | F1.0, fixed iris |
| Depth of Field | 2.8 mm: 3.3 m to infinity; 4 mm: 3.8 m to infinity |
| DORI Distance | 2.8 mm: detect 89 m, observe 35 m, recognize 17 m, identify 8 m; 4 mm: detect 109 m, observe 43 m, recognize 21 m, identify 10 m |
| Supplement Light | Smart Hybrid Light integrating IR and white light, with 3 supplemental lighting modes |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Supported |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps; 60 Hz: 30 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080 or 1280 × 720 |
| Sub-Stream | 50 Hz: 25 fps; 60 Hz: 30 fps at 1280 × 720, 640 × 480 or 640 × 360 |
| Third Stream | 10 fps at 1920 × 1080, 1280 × 720, 640 × 480 or 640 × 360; supported under certain settings |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG; third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps, CBR/VBR |
| H.264 Type | Baseline Profile, Main Profile and High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding | H.264 and H.265 encoding |
| Region of Interest | 1 fixed region for the main stream |
| Wide Dynamic Range | 130 dB scene-adaptive WDR |
| Signal-to-Noise Ratio | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, distortion correction and defog |
| Image Stabilization | EIS |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto and schedule |
| Privacy Mask | 4 programmable polygon privacy masks |
| Built-in Microphone | Arrayed dual-microphone for real-time high quality audio |
| Audio Type | Mono sound |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3 and AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw); 16 Kbps (G.722.1); 16 Kbps (G.726); 16 to 64 Kbps (AAC-LC); 32 to 192 Kbps (MP2L2); 8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz, 16 kHz, 32 kHz and 48 kHz |
| Environment Noise Filtering | Supported |
| Basic Events | Motion detection with human and vehicle target classification, video tampering alarm and exception |
| Smart Events | Scene change detection |
| Deep Learning Functions | Face capture; perimeter protection with line crossing, intrusion, region entrance and region exiting, triggered by human and vehicle target types |
| Alarm Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture and send email |
| Network Interface | 1 × RJ45 10/100 Mbps self-adaptive Ethernet port |
| On-board Storage | Built-in microSD/microSDHC/microSDXC card slot, up to 512 GB |
| Network Storage | NAS via NFS and SMB/CIFS, with Auto Network Replenishment (ANR) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, SRTP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP and WebSocket(s) |
| API | ONVIF Profile S, Profile G and Profile T, ISAPI, SDK and ISUP |
| Security | Password protection, complex password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, RTP/RTSP over HTTPS, security audit log, TLS 1.1/1.2/1.3 and MAC host authentication |
| User Management | Up to 32 users in 3 levels: administrator, operator and user |
| Simultaneous Live View | Up to 6 channels |
| Client Software | iVMS-4200, Hik-Connect and HikCentral |
| Web Browser | Plug-in free live view on Chrome 80+, Firefox 80+ and Edge 89+ |
| Reset Key | Supported |
| General Functions | Heartbeat, mirror, flash log, password reset via email, pixel counter and anti-banding |
| Power Supply | 12 VDC ±25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug with reverse polarity protection; PoE IEEE 802.3af Class 3, max. 11 W |
| Housing Material | Metal cover and metal main body |
| Startup and Operating Conditions | -30°C to +60°C; humidity 95% or less, non-condensing |
| Storage Conditions | -30°C to +60°C; humidity 95% or less, non-condensing |
| Protection Rating | IP67 (IEC 60529-2013) |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018), moderate protection level |
| Dimensions | Ø138.3 mm × 115.4 mm |
| Package Dimensions | 170 × 170 × 160 mm |
| Weight | Approx. 750 g |
| Weight with Package | Approx. 1140 g |
| System Languages | 33 languages including English, Russian, German, French, Spanish, Korean, Japanese and Traditional Chinese |
| Certification | CE-EMC, RCM, IC, KC, UL, CB, CE-LVD and CE-RoHS |
| Optional Accessories | DS-1280ZJ-PT6-Y, DS-1276ZJ-SUS, DS-1275ZJ-SUS, DS-1273ZJ-140-Y, DS-220AZJ-145-WAY, DS-1271ZJ-140-Y, DS-1476ZJ-SUS, DS-1273ZJ-140B-Y, DS-1275ZJ-S-SUS and DS-1475ZJ-SUS |
| Available Models | DS-2CD2367G3-LI2UY(2.8mm), DS-2CD2367G3-LI2UY(4mm) and DS-2CD2367G3-LI2UY(Black) |
