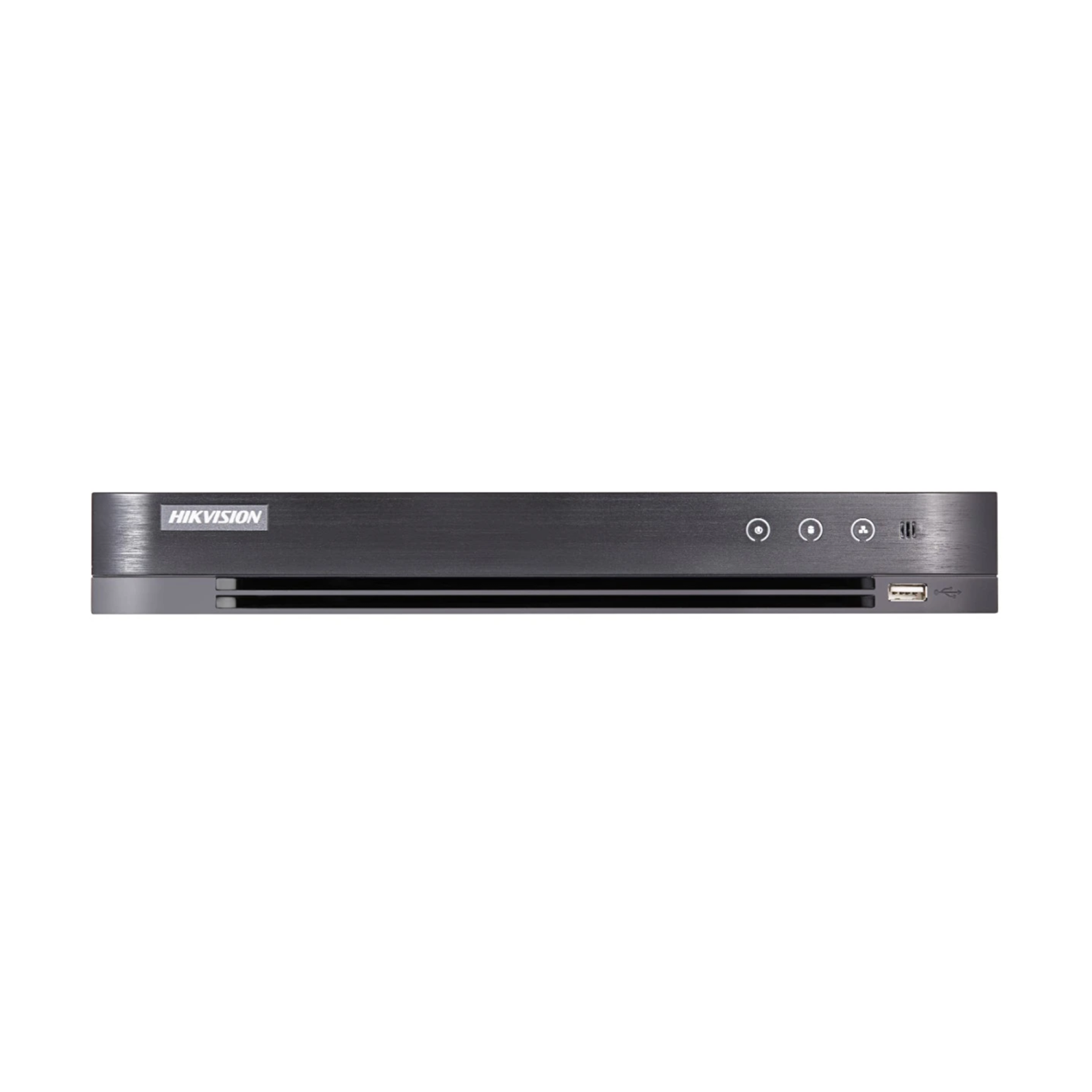

Hikvision Turbo HD1080P DVR DS-7204HQHI-K1 ( Бичигч Төхөөрөмж )

Барааны код: #19020

Hikvision Turbo HD1080P DVR DS-7204HQHI-K1 ( Бичигч Төхөөрөмж )

Бүтээгдэхүүний үндсэн үзүүлэлт

  • Дэмжих сувгийн тоо: 4Ch
  • Брэнд: Hikvision

Үнэ :

159,900 ₮

0 ширхэг бэлэн байна

Энэ бараа дууссан байна. Танд асуух зүйл байвал 7575-6677 утсаар холбогдоорой

StorePay

Төлбөрөө 4 хувааж төл

Omniway

Төлбөрөө 2-4 хувааж төл

Pocket

Урьдчилгаагүй шимтгэлгүй

Sono

Хүү ТЭГ, шимтгэл ТЭГ.

Техникийн үзүүлэлт

ModelDS-7204HQHI-K1/E
Encoding resolutionWhen 1080p lite mode is not enabled:; 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled:; 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Video bit rate32 Kbps to 6 Mbps
Frame rateMain stream:; When 1080p Lite mode is not enabled:; For 4 MP stream access:; 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N); For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps; For 1080p stream access:; 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N); For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N); When 1080p Lite mode is enabled:; 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N); Sub-stream:; WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual streamSupport
Stream typeVideo, Video & Audio
Audio compressionG.711u
Audio bit rate64 Kbps
Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
Audio output1-ch, RCA (Linear, 1 KΩ)
Synchronous playback4-ch
IP video input1-ch (up to 5-ch); Enhanced IP mode on:; 2-ch (up to 6-ch), each up to 4 Mbps; Up to 6 MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS inputPAL/NTSC
Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog video input4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS outputN/A
HDMI/VGA outputHDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output; VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote connections32
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
CapacityUp to 10 TB capacity for each disk
Serial interfaceN/A
USB interface2 × USB 2.0
Alarm in/outN/A
SATA1 SATA interface
Consumption(without HDD)≤ 5 W
Working humidity10% to 90%
Power supply12 VDC
Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
Dimensions(W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weights (without HDD)≤ 1.6 kg (3.5 lb)
