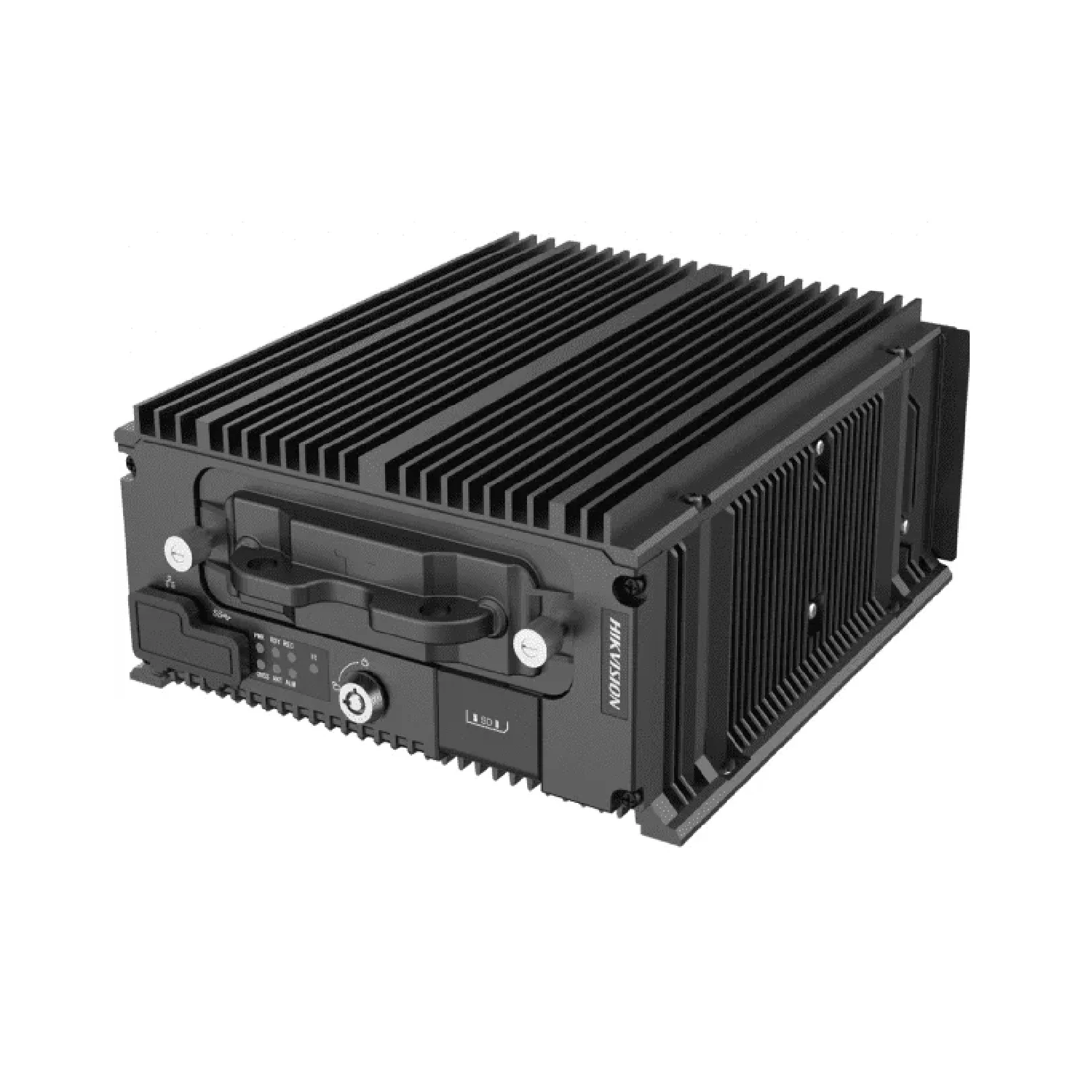

Hikvision 8-channel analog HD camera access DVR AE-MD7083 (Тээврийн хэрэгсэлийн бичигч төхөөрөмж)

Барааны код: #28383

Hikvision 8-channel analog HD camera access DVR AE-MD7083 (Тээврийн хэрэгсэлийн бичигч төхөөрөмж)

Бүтээгдэхүүний үндсэн үзүүлэлт

  • Дэмжих сувгийн тоо: 8Ch
  • Дэмжих хардны тоо: 2
  • Дэмжих нягтаршил: 1080p (1920 × 1080)/60Hz
  • Брэнд: Hikvision

Үнэ :

2,639,900 ₮

0 ширхэг бэлэн байна

Энэ бараа дууссан байна. Танд асуух зүйл байвал 7575-6677 утсаар холбогдоорой

Голомт банк

Хэрэглээний зээл

StorePay

Төлбөрөө 4 хувааж төл

Omniway

Төлбөрөө 2-4 хувааж төл

Pocket

Урьдчилгаагүй шимтгэлгүй

Sono

Хүү ТЭГ, шимтгэл ТЭГ.

Техникийн үзүүлэлт

ModelHikvision AE-MD7083
Product Type8-channel analog HD camera access mobile digital video recorder
Analog Camera Input8-ch Hikvision wiring sequence analog cameras, max. 1080P
IP Camera Extension8-ch IP cameras extendable via PoE switch
Video CompressionH.265 and H.264
Encoding ResolutionMain stream: 1080P, 720P, WD1 or 4CIF; sub-stream: 720P, WD1, 4CIF, 2CIF or CIF
Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
Stream TypeVideo, and video & audio
Dual StreamSupported
Audio CompressionG.711a, G.711u, G.722.1 and G.726
Audio Bit Rate16 Kbps to 64 Kbps
Two-Way Audio1, integrated in the EXT.DEV interface
Audio Output1, integrated in the EXT.DEV interface
Video OutputMain output: 1, integrated in the EXT.DEV interface; auxiliary output: 1 × 4-pin aviation connector; VGA: 1
Advanced Driving Assistance System (ADAS)Detection and alerts for FCW, LDW, SLW, HMW, PCW and TSR
Driving Status Monitoring (DSM)Detection and alerts for distraction, fatigue, calling, smoking, unfastened seat belt, yawning, absence from post, IR-blocking sunglasses and occlusion, with switchable A-pillar and formal attire algorithms
Blind Spot DetectionRight blind spot detection and alerts
Driver IdentificationDriver modeling, driver detection and comparison, driver change alerts, abnormal identity detection and reporting, and attendance tracking
Concurrent AI FeaturesUp to 4 AI features running at the same time: ADAS, DSM, DI and BSD-R
PositioningGPS and GLONASS, 1 × FAKRA antenna; records location information in the video stream
G-SensorBuilt-in
Cellular Network1 × 4G card slot and 1 × FAKRA antenna; 5G module optional. Industrial SIM cards must be used — Hikvision accepts no responsibility for issues caused by general SIM cards
Wi-FiWI2.4G model: 1 × 2.4 GHz antenna; WI5.8G model: 2 × 5.8 GHz antennas. Optional, with 802.11b/g/n or 802.11ac selectable (1 antenna for b/g/n, 2 antennas for ac)
Network InterfaceFront panel: 1 × RJ45 10/100 Mbps; rear panel: 1 × RJ45 10/100/1000 Mbps
SD Card Storage1 × SD card, up to 512 GB; not available on the baseline model — specify the SD card capacity when ordering
HDD / SSD Storage2 × 2.5-inch HDD/SSD; SSD up to 4 TB and HDD up to 2 TB each. Optional converter for local data export and optional hard disk case with heating function
Serial Ports3 × RS-232 (harness optional), 2 × RS-485 and 1 × RS-485 integrated in the EXT.DEV interface
USB InterfaceFront panel: 1 × USB 3.0; rear panel: 1 × USB 2.0 (5-pin aviation connector)
Sensor-in4 high/low level signal inputs collecting driving information such as left and right turn, braking and reversing
Alarm Input4 high/low level signal inputs, 1 pulse signal input and 1 button input
Alarm Output2 relay signal outputs
CAN Interface2
ConnectorsSpecialized aviation connectors ensuring signal stability
Power ProtectionBuilt-in super-capacitor prevents damage from sudden power outage; power-off protection prevents key data loss
Shutdown ControlShutdown delay from 0 h to 6 h and 24-hour scheduled startup and shutdown
Network SecuritySoftware-based firewall supported; accessible via web browser
Operation MethodMouse, IR remote control, web control and display screen
Power Supply+9 to +36 VDC
Power ConsumptionStandby: 0.5 W or less; full load: 75 W or less; 20 W or less without peripherals and storage media
ChassisAluminium die-cast, fanless design
Operating Temperature-25°C to +70°C
Operating Humidity10% to 95%, non-condensing
Dimensions202 × 267.6 × 93.9 mm
Weight3.31 kg without storage media
Available ModelsAE-MD7083 and AE-MD7083(1T/SSD)
