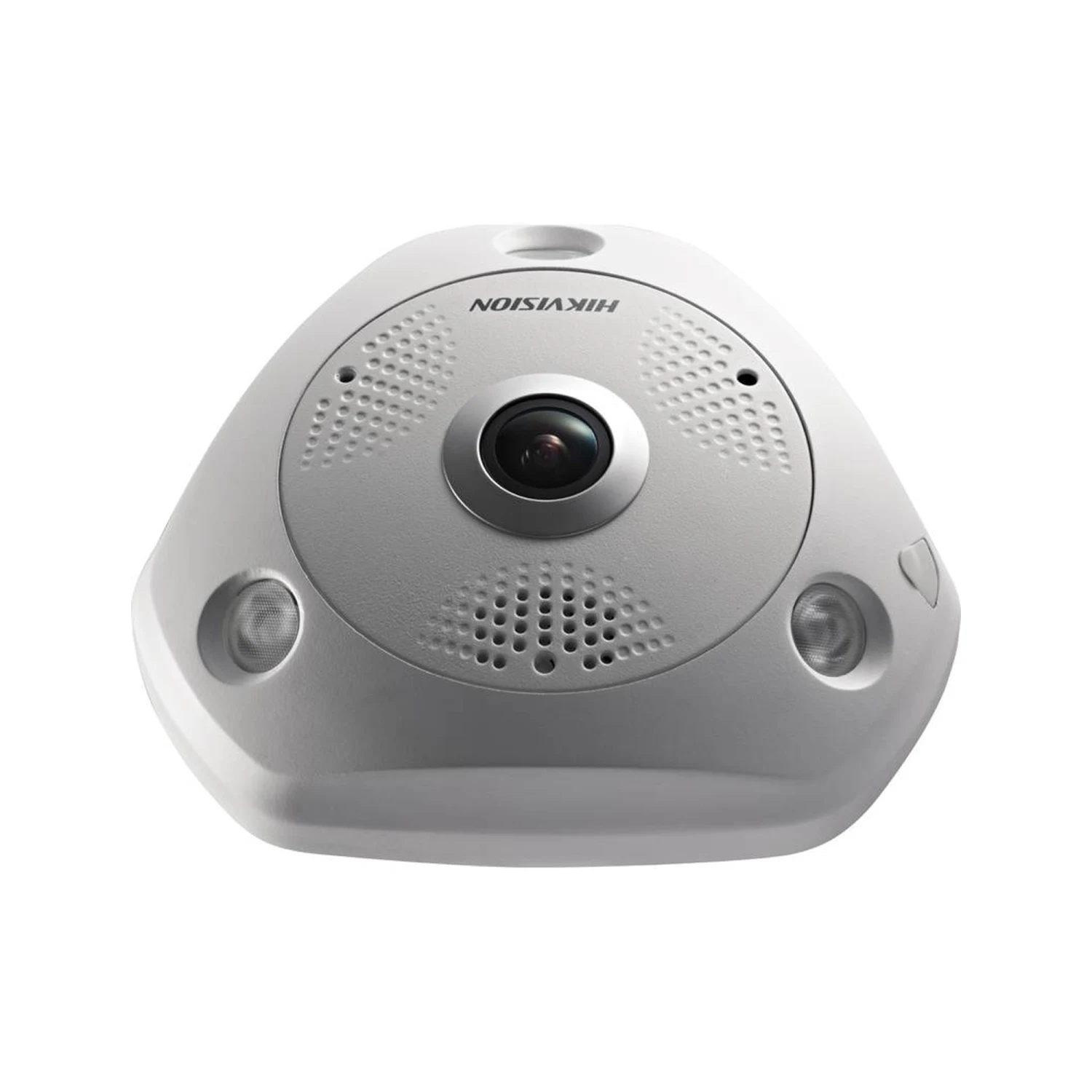

Hikvision WDR IR Fisheye Camera 3MP 1.6mm DS-2CD6332F-IS ( Загасан Нүдэт , Хяналтын Камер )

Барааны код: #19084

Hikvision WDR IR Fisheye Camera 3MP 1.6mm DS-2CD6332F-IS ( Загасан Нүдэт , Хяналтын Камер )

Бүтээгдэхүүний үндсэн үзүүлэлт

  • Case Type: Fisheye
  • Брэнд: Hikvision

Үнэ :

899,900 ₮

0 ширхэг бэлэн байна

Энэ бараа дууссан байна. Танд асуух зүйл байвал 7575-6677 утсаар холбогдоорой

StorePay

Төлбөрөө 4 хувааж төл

Omniway

Төлбөрөө 2-4 хувааж төл

Pocket

Урьдчилгаагүй шимтгэлгүй

Sono

Хүү ТЭГ, шимтгэл ТЭГ.

Техникийн үзүүлэлт

Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2048 × 1536
Min. Illumination0.1 Lux @ (F1.2, AGC ON), 0.28 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterSupport
Lens1.19 mm, F2.0; horizontal field of view: 180° (wall mount), 360° (ceiling mount), 360° (table mount)
Lens MountM12
Day & NightIR cut filter
Digital Noise Reduction3D DNR
WDR120 dB
IR Range15 m
Video CompressionMain stream: H.264; sub stream: H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.264+Supported only when the display mode is Fisheye View
Video Bit Rate256 Kbps to 16 Mbps
Main Stream50 Hz: 25 fps (2048 × 1536, 1536 × 1536); 60 Hz: 30 fps (2048 × 1536, 1536 × 1536)
Sub Stream50 Hz: 25 fps (720 × 720, 704 × 576); 60 Hz: 30 fps (720 × 720, 704 × 480)
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-160 Kbps (MP2L2)
Audio Sampling RateMax. 48 kHz
Environment Noise FilteringSupport
Image EnhancementBLC/3D DNR
Image SettingSaturation, brightness, contrast, sharpness adjustable by client software or web browser
Region of Interest3 fixed regions for each stream
Day/Night SwitchAuto/Schedule/Triggered by Alarm In
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Mount TypeTable, wall, and ceiling
Decoding ModeHardware decoding and software decoding
Display Mode15 display modes: Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, Fisheye + Panorama + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
Intrusion DetectionEnter and loiter in a pre-defined virtual region, up to 4 regions
Line Crossing DetectionCross a pre-defined virtual line, up to 4 lines
Heat MapGraphical representation of density of visit in a configured area
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
Network StoragemicroSD/SDHC/SDXC card (128 GB) local storage, NAS (NFS, SMB/CIFS), ANR
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
StandardONVIF (Profile S, Profile G), ISAPI
Simultaneous Live ViewUp to 20 channels
General FunctionOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
Communication Interface1 RJ45 10M/100M Ethernet port; 1 RS-485 interface
Audio Input1 × 3.5 mm audio interface (Mic in/Line in); 1 built-in microphone, -42 dB
Audio Output1 × 3.5 mm audio output interface; 1 built-in speaker, echo cancellation
Alarm1 input, 1 output (up to DC 24 V 1 A or AC 110 V 500 mA)
Video Output1 Vp-p composite output (75 Ω/BNC)
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset ButtonYes
Operating ConditionsIndoor: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing)
Power Supply12 V DC ± 10%, PoE (802.3af)
Power Consumption12 V DC: max. 9.3 W; PoE (802.3af): max. 12.18 W
Dimensions164 × 152.8 × 45.5 mm (6.46" × 6.02" × 1.79")
Weight1400 g (3.09 lbs)
