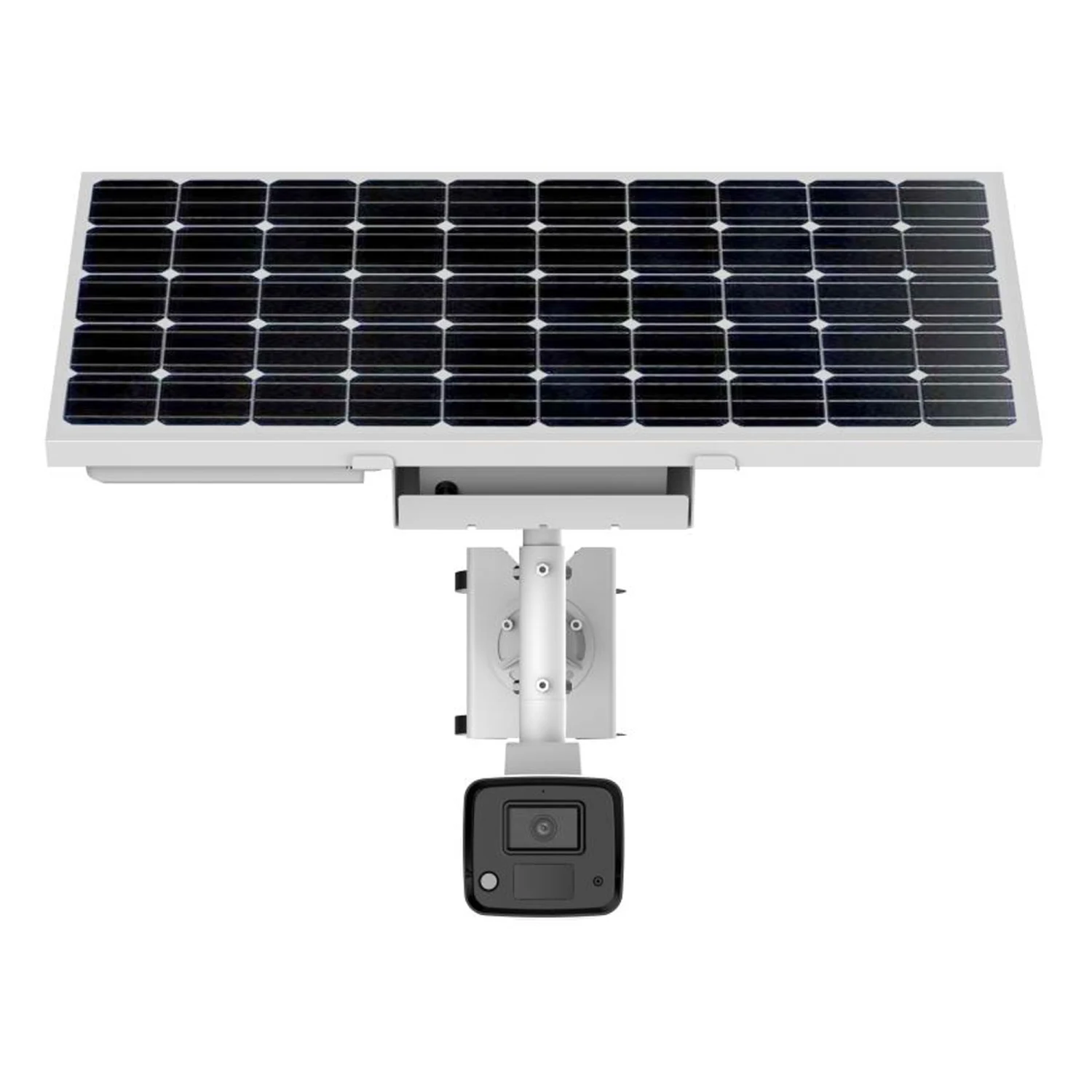

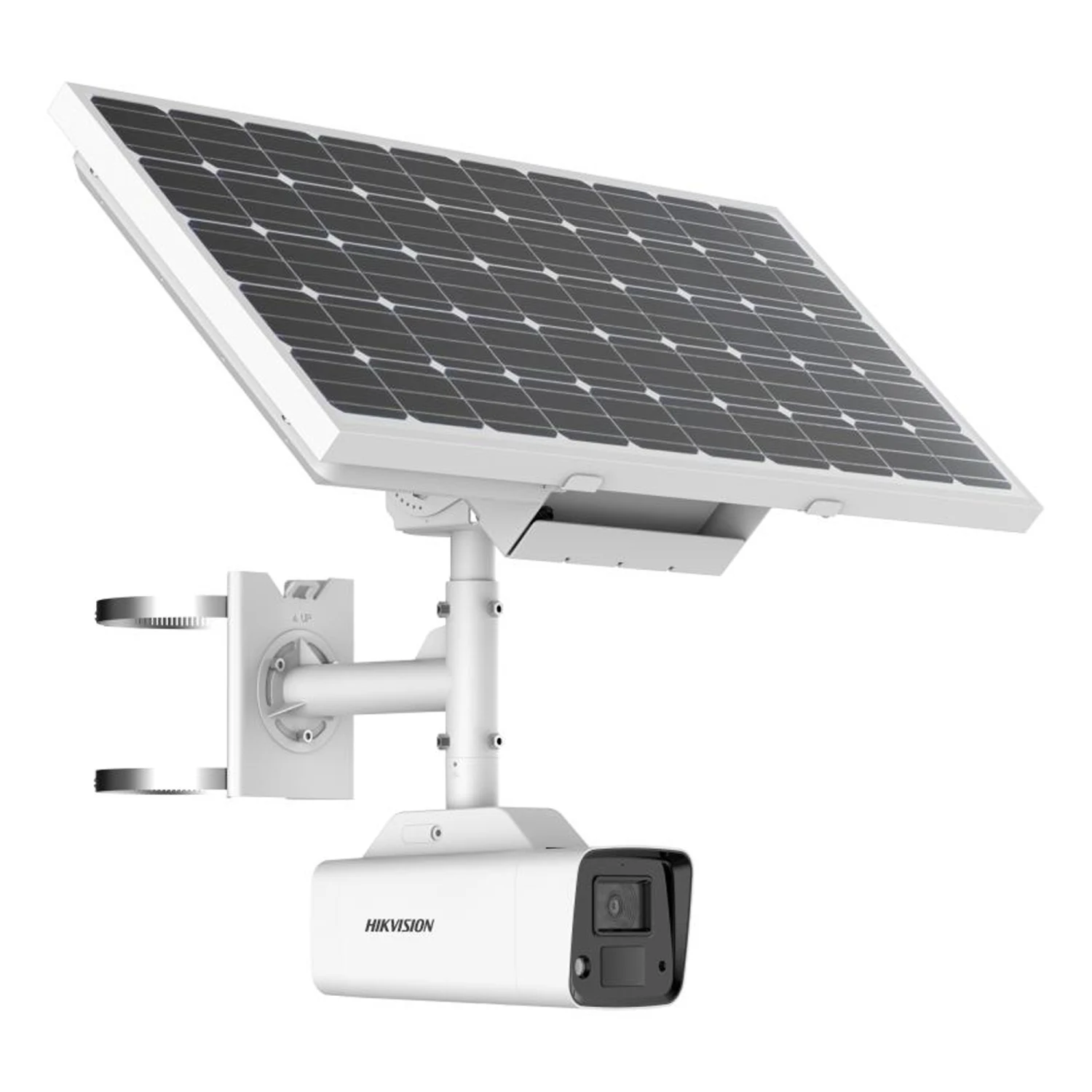

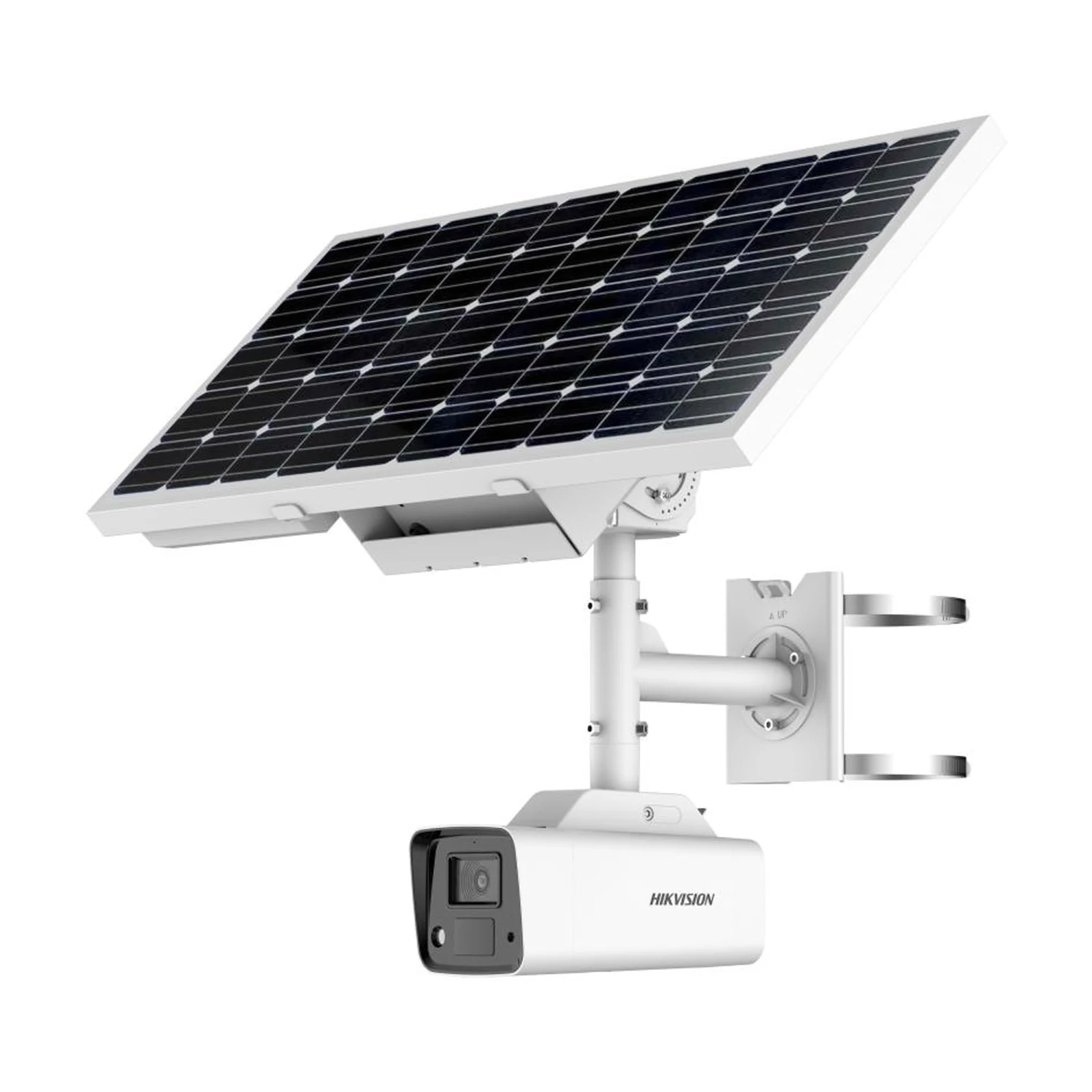

Hikvision 4MP ColorVu Solar-Powered Security Camera Setup DS-2XS2T47G1-LDH/4G/C18S40 ( Нарны Зайгаар Ажилладаг Хяналтын Камер , Иж Бүрдэл )
Барааны код: #20840
Бүтээгдэхүүний үндсэн үзүүлэлт
- Брэнд: Hikvision
Үнэ :
3,199,900 ₮
4 ширхэг бэлэн байна
Бэлэн бараа 12-72 цагт хүргэгдэнэ
Хүргэлтийн үйлчилгээ
Төлбөр баталгаажсан үеэс хойш 08-48 цагийн дотор хүргэгдэнэ
- 100,000 төгрөг болон түүнээс дээш үнийн дүнтэй барааг үнэгүй хүргэнэ
- 100,000 төгрөг дотор үнийн дүнтэй барааг 5000 төгрөгөөр хүргэнэ
Хүргэлтийн бүс
- Баруун зүг /5 шар/
- Зүүн зүг /Амгалан/
- Урд зүг /Зайсан, Архивын ерөнхий газар/
- Хойд зүг / 7 Буудал/
Техникийн үзүүлэлт
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | 24/7 color imaging |
| Angle Adjustment | Solar panel: pan 0° to 358°, tilt -40° to 0°; camera: pan 0° to 360°, tilt -60° to 0° |
| Lens Type | Fixed focal lens, 4 and 6 mm optional |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 4 mm: 2.7 m to ∞; 6 mm: 5.9 m to ∞ |
| Focal Length & FOV | 4 mm: horizontal FOV 75°, vertical FOV 40°, diagonal FOV 89°; 6 mm: horizontal FOV 49°, vertical FOV 27°, diagonal FOV 57° |
| Lens Mount | M12 |
| DORI | 4 mm: D 82 m, O 32 m, R 16 m, I 8 m; 6 mm: D 120 m, O 47 m, R 24 m, I 12 m |
| Supplement Light Type | White light |
| Supplement Light Range | Performance mode: up to 30 m; proactive mode: up to 10 m |
| Smart Supplement Light | Yes |
| Main Stream | 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264; sub-stream: H.265/H.264/MJPEG; H.264+ and H.265+: main stream supports under performance mode |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Uplink and Downlink Data Rate | Cat 4, uplink: 50 Mbps, downlink: 150 Mbps |
| SIM Card Type | Micro SIM |
| Mobile Standard | LTE-TDD, LTE-FDD, WCDMA, GSM |
| Frequency (NL668-EU) | LTE-TDD: B38/B40/B41; LTE-FDD: B1/B3/B5/B7/B8/B20/B28; WCDMA: B1/B5/B8; GSM: B3/B5/B8 |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP, OTAP |
| Security | Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for ONVIF |
| Simultaneous Live View | Up to 6 channels |
| Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network Storage | Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, HikCentral |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | Digital WDR |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| On-Board Storage | Built-in eMMC storage up to 64 GB (50 GB available for recording); built-in memory card slot, microSD/microSDHC/microSDXC card, up to 256 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Reset Key | Yes |
| Basic Event | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Linkage | Upload to memory card, notify surveillance center, trigger recording, trigger capture, audible warning |
| Power Consumption | Typical: 1.85 W (4G working); standby: 40 mW; max.: 6 W |
| Power Supply | 40 W (deviation: ± 2 W) solar panels; 12 VDC ± 25% (for debugging only) |
| Power Interface | Ø 5.5 mm coaxial power plug; extended solar panel: four-core aviation connector |
| Battery Type | Ternary lithium |
| Battery Capacity | 8.4 Ah × 2 packs |
| Max. Charging Voltage | 12.6 V |
| Battery Voltage | 9 V to 12.6 V |
| Battery Operating Temperature | Charging: -20 °C to 45 °C (-4 °F to 113 °F); discharging: -20 °C to 55 °C (-4 °F to 131 °F) |
| Battery Endurance | Performance mode: 3.6 days; proactive mode: 6 days; standby mode: 30 days |
| Battery Life | More than 500 cycles |
| Battery Weight | Approx. 1400 g (3.1 lb.) |
| Material | ADC12 |
| Startup and Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F), humidity 95% or less (non-condensing) |
| Storage Conditions | -20 °C to 50 °C (-4 °F to 122 °F), humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, flash log |
| Protection | IP67 (IEC 60529-2013) |
| Dimension | 679 × 443 × 760 mm (26.7" × 17.4" × 29.9") |
| Weight | Approx. 11.570 kg (25.5 lb.) |
| With Package Weight | Approx. 16.21 kg (35.7 lb.) |
