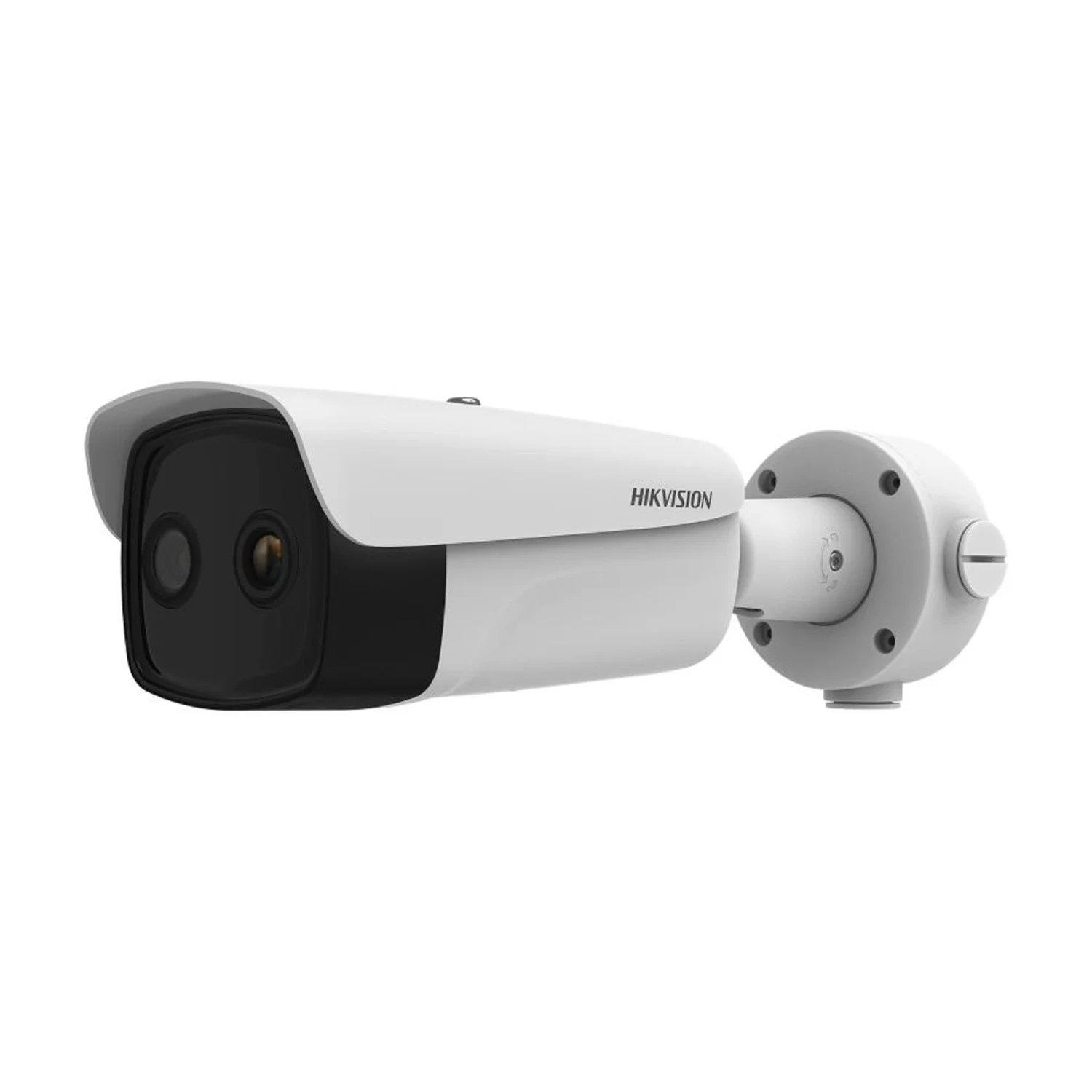

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera DS-2TD2637-10/QY / Дулаан Мэдэрдэг Камер /

Барааны код: #22955

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera DS-2TD2637-10/QY / Дулаан Мэдэрдэг Камер /

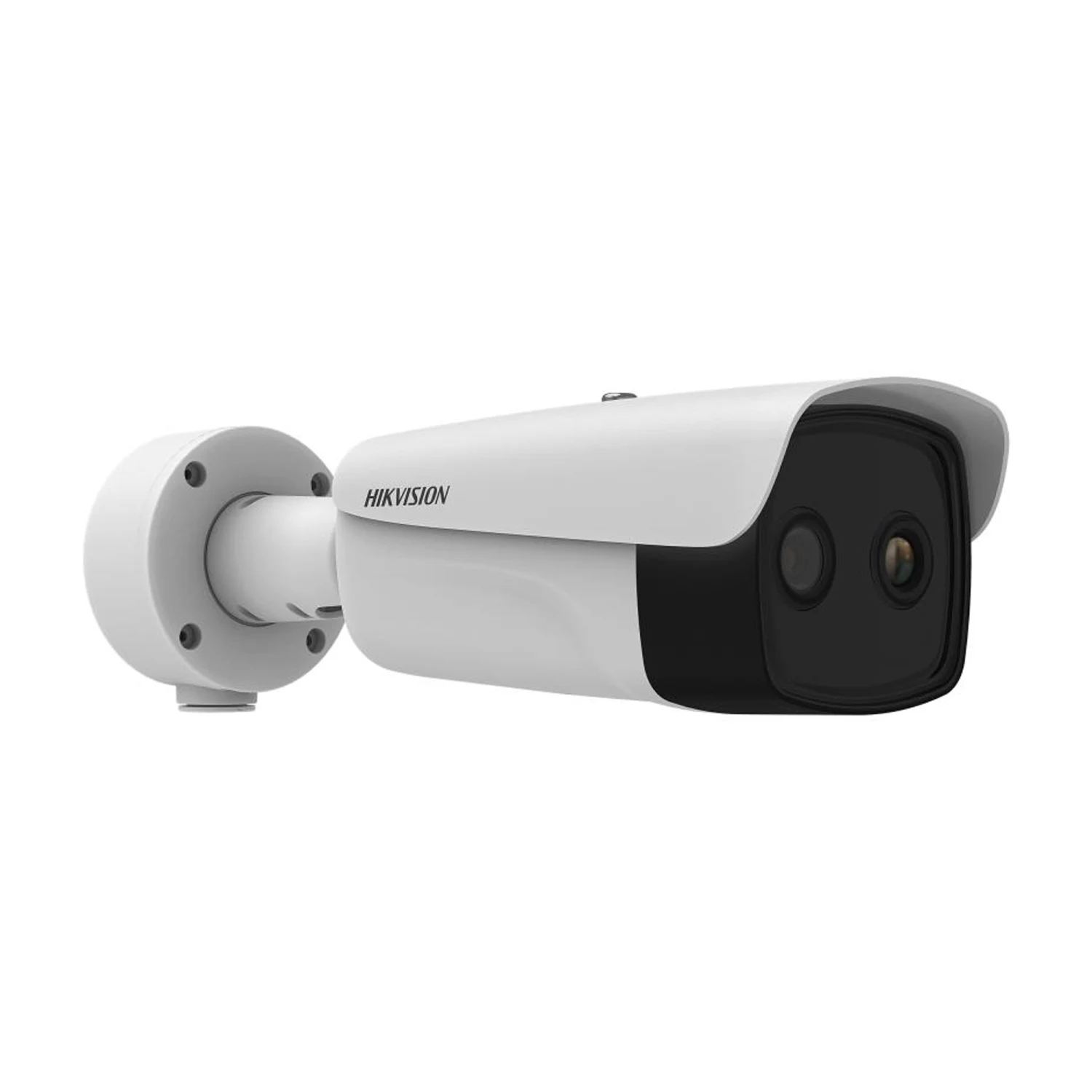

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera DS-2TD2637-10/QY / Дулаан Мэдэрдэг Камер / - зураг 2

Бүтээгдэхүүний үндсэн үзүүлэлт

  • Брэнд: Hikvision

Үнэ :

6,499,900 ₮

0 ширхэг бэлэн байна

Энэ бараа дууссан байна. Танд асуух зүйл байвал 7575-6677 утсаар холбогдоорой

StorePay

Төлбөрөө 4 хувааж төл

Omniway

Төлбөрөө 2-4 хувааж төл

Pocket

Урьдчилгаагүй шимтгэлгүй

Sono

Хүү ТЭГ, шимтгэл ТЭГ.

Техникийн үзүүлэлт

ModelDS-2TD2637-10/QY
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Resolution384 x 288
Pixel Pitch17 μm
Spectral Range8 μm to 14 μm
Focal Length9.7 mm
IFOV1.75 mrad
ApertureF1.0
Field of View37.5° × 28.5° (H × V)
Min. Focusing Distance1 m
Digital Zoom×2, ×4
Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520
Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Field of View84° × 44.8° (H × V)
Focal Length4 mm
Shutter Speed1 s to 1/100,000 s
White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night ModeIR Cut Filter with Auto Switch
WDR120 dB
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Target ColorationYes. Supported in white hot and black hot mode.
IR DistanceUp to 30 m
IR Intensity and AngleAutomatically adjusted
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Main StreamOptical channel; 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Thermal channel; 25 fps (1280×720P, 704×576, 352×288, 384×288)
Sub-streamOptical channel; 50 HZ: 25 fps (704 × 576, 352 × 288); 60 HZ: 30 fps (704 × 480, 352 × 240); Thermal channel; 25 fps (704 × 576, 352 × 288, 384 × 288)
Video CompressionMain Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
Network StorageMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
APIISAPI, OISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Alarm Input2, alarm input (0-5 VDC)
Alarm Output2, alarm output (alarm response actions configurable)
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface; Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear level, impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.; 1, RS-485 interface (half duplex)
Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block; PoE (802.3af, class 3)
Power Consumption24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W; 12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W; 24VDC: 0.4A, max 9.5W; PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
Working Temperature/HumidityTemperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
Protection LevelIP67 Standard; IK10-rated housing; TVS 4000V lightning protection, surge protection, voltage transient protection; NEMA 4X anti-corrosion housing
Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
VCA Range for Humans70 m
VCA Range for Vehicles210 m
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KSC9832: 2019; KSC9835: 2019); FCC (ANSI C63.4; FCC Part15 sub B)
SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)
EnvironmentCE-RoHS:2011/65/EU,; WEEE: 2012/19/EU,; Reach:Regulation(EC) No 1907/2006
ProtectionIP67: IEC 60529-2013; IK10: IEC 62262-2002
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
